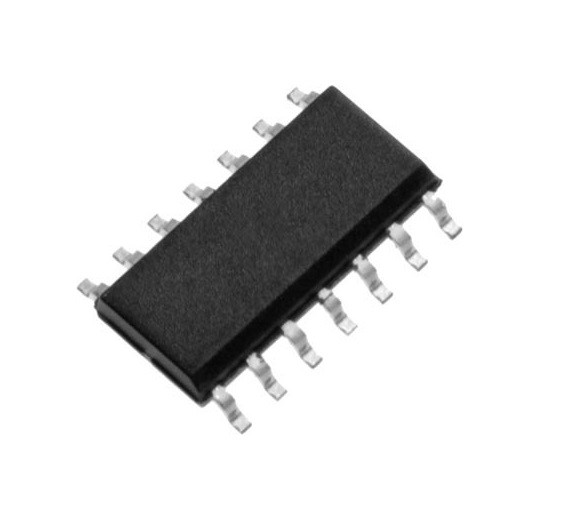

74HCT32 SMD IC SOIC 14 Quad 2 Input OR Gate TTL Compatible High Speed CMOS Logic IC (74HCT32 IC)

SKU: ICS-91Category: Electronic Components
₹ 23.60 (Inclusive of 18.00% GST)
Base Price: ₹ 20.00 | GST (18.00%): ₹ 3.60
Out of Stock
Secure payments powered by Razorpay
UPIMastercardRuPayGoogle Pay
Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email

74HCT32 SMD IC SOIC 14 Quad 2 Input OR Gate TTL Compatible High Speed CMOS Logic IC (74HCT32 IC)

The 74HCT32 is a high speed CMOS quad 2 input OR gate IC with TTL compatible input levels. It contains four independent OR gates and is widely used for digital logic operations and signal combining in electronic circuits.

Key Features -

  • Quad 2 input OR gate IC
  • TTL compatible input levels (HCT series)
  • High speed CMOS logic performance
  • Low power consumption
  • High noise immunity
  • SMD SOIC 14 package

Specifications -

  • IC type - quad 2 input OR gate
  • Logic family - HCT CMOS TTL compatible
  • Package type - SOIC 14 SMD
  • Supply voltage - approx 4.5V to 5.5V
  • Input type - TTL compatible
  • Output type - CMOS output
  • Propagation delay - approx 8ns to 12ns typical
  • Operating temperature - approx -40 to 85 degree C

Applications -

  • Digital logic circuits
  • Signal combining and control
  • Microcontroller interfacing
  • Timing and control circuits
  • Embedded system design
  • Industrial electronics

Pinout Configuration -

  • A1 B1 - inputs gate 1
  • Y1 - output gate 1
  • A2 B2 - inputs gate 2
  • Y2 - output gate 2
  • A3 B3 - inputs gate 3
  • Y3 - output gate 3
  • A4 B4 - inputs gate 4
  • Y4 - output gate 4
  • Vcc - power supply
  • GND - ground
