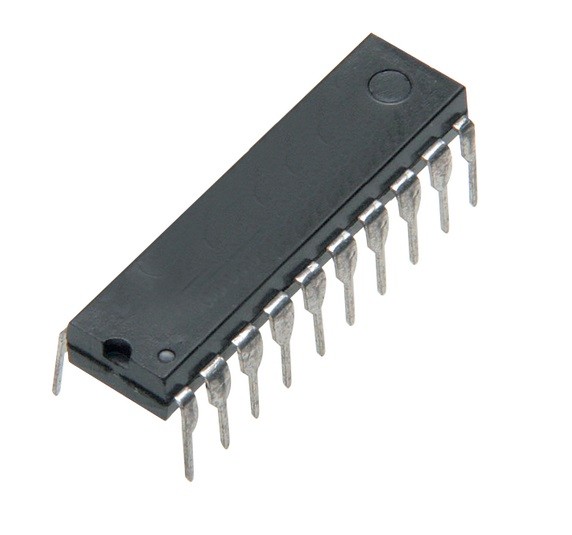

74HCT373 Octal D Type Transparent Latch With 3 State Outputs IC (74HCT373 IC)

The 74HCT373 is a high speed CMOS octal D type transparent latch with TTL compatible input levels and 3 state outputs. It allows data to pass through when latch enable is active and stores data when disabled.

This IC is used in data storage, bus interfacing, and digital systems where temporary data holding and controlled output are required. It ensures reliable performance in TTL compatible applications.

Key Features

• Octal D type transparent latch
• Transparent latch operation
• 3 state output control
• 8 bit data storage
• Suitable for bus interfacing applications
• High speed CMOS logic operation

Specifications

• IC Type = Octal D Type Transparent Latch
• Logic Family = 74HCT
• Supply Voltage = 4.5V to 5.5V
• Package Type = DIP
• Number of Pins = 20
• Operating Temperature = -40C to +85C

Interfaces

• VCC = Power supply
• GND = Ground
• LE = Latch enable input
• OE = Output enable control
• D0 to D7 = Data inputs
• Q0 to Q7 = Output lines
