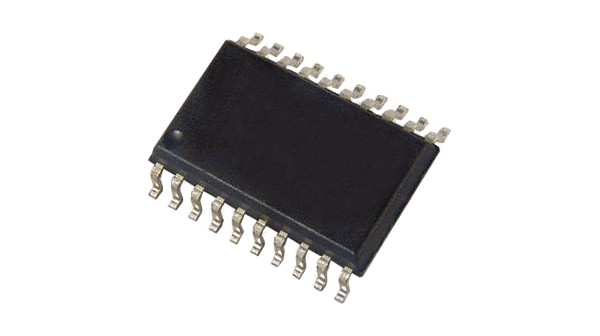

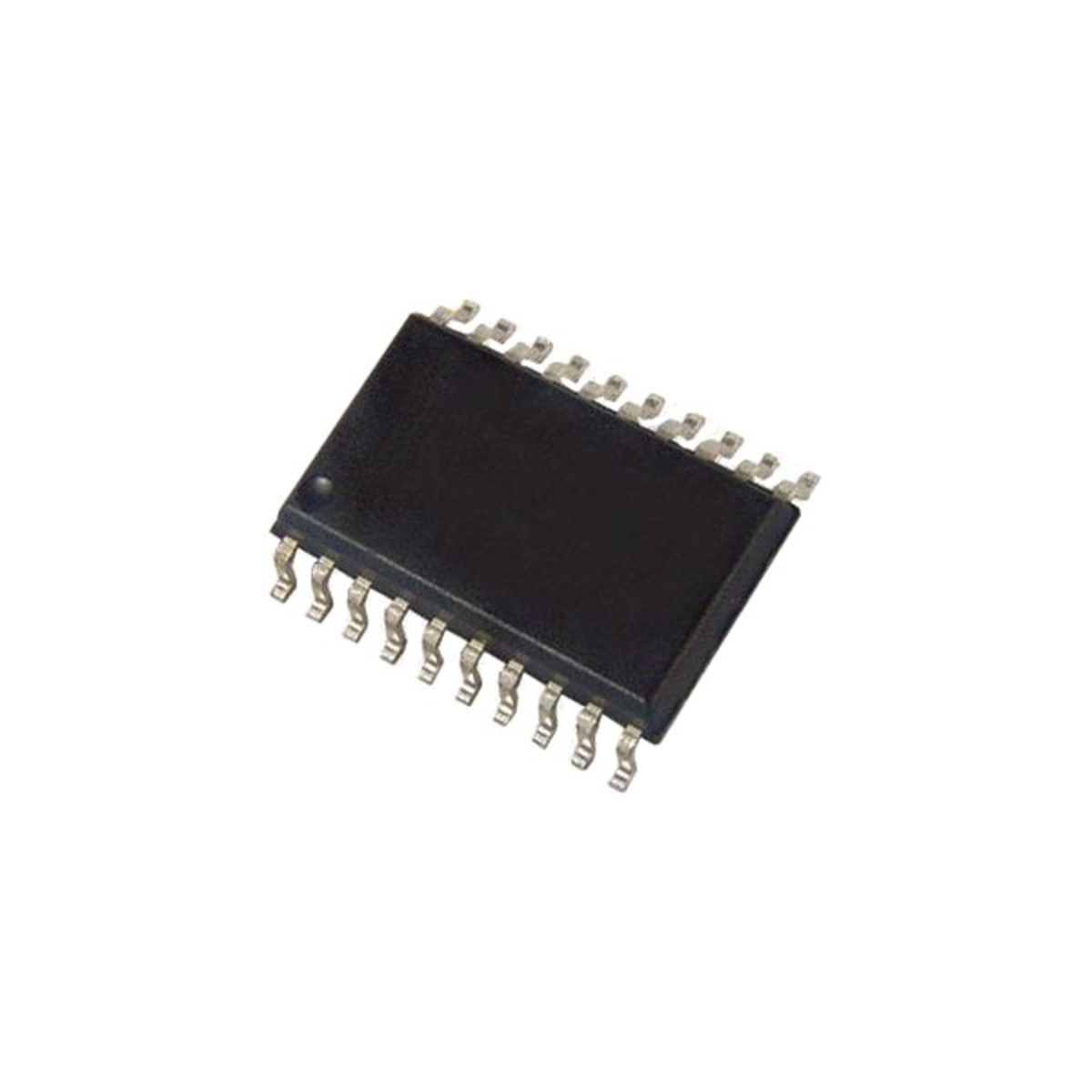

74LC245A Octal Bus Transceiver IC SMD TSSOP20 (74LC245A TSSOP 20 IC)
The 74LC245A Octal Bus Transceiver IC SMD TSSOP20 is a high speed CMOS logic IC featuring eight non inverting bidirectional transceiver channels with 3 state outputs. It is designed for controlled data transfer between buses in digital systems, ensuring stable signal flow and isolation when required. The TSSOP20 SMD package offers compact size, efficient PCB usage, and reliable performance in high density circuit designs.
The 74LC245A SMD IC is widely used in India for embedded systems, microcontroller interfacing, memory communication, and industrial electronics. It is valued for its bidirectional control, low power consumption, and high speed operation in modern electronic applications.
Key Features
- Octal Bus Transceiver: Eight bidirectional data channels
- Direction Control: Manages data flow between buses
- 3 State Outputs: High impedance mode for bus sharing
- Output Enable Control: Allows isolation of outputs
- High Speed CMOS Logic: Fast and efficient operation
- SMD TSSOP20 Package: Compact and reliable surface mount design
Specifications
- IC Type: Octal Bus Transceiver IC
- Logic Family: LC CMOS Logic
- Number of Channels: 8
- Direction Control: Yes
- Output Type: 3 State Output
- Operating Voltage: Low voltage CMOS range
- High Speed Operation: Fast signal transmission
- Package Type: TSSOP 20 SMD
- Mounting Type: Surface Mount
- Applications: Bus interfacing data transfer memory communication microcontroller systems embedded systems industrial electronics
Pinout Configuration TSSOP20 Layout
- Bidirectional data pins for eight channels
- Direction control pin
- Output enable control pin
- VCC supply pin
- GND ground pin
