74LS00 Quad 2-Input NAND Gate IC DIP-14 (TTL Logic Quad NAND Gate Integrated Circuit)

The 74LS00 is a Quad 2-Input NAND Gate integrated circuit manufactured using Low-Power Schottky (LS) TTL technology. It contains four independent 2-input NAND gates, providing high-speed logic operation with low power consumption. Designed for compatibility with standard TTL logic levels, the IC features input clamp diodes for improved protection against voltage transients. Packaged in a DIP-14 through-hole package, the 74LS00 is widely used in digital logic circuits, combinational logic, control systems, and educational electronics projects.

Key Features -

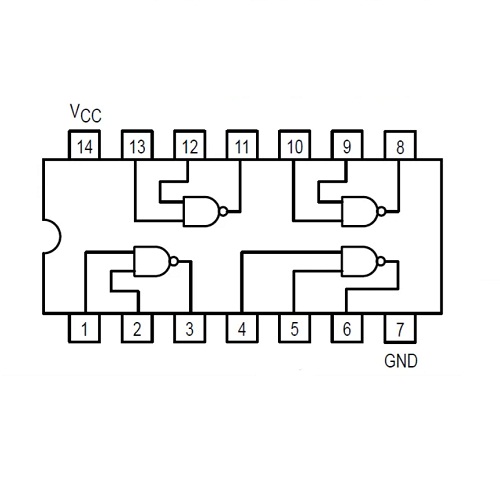

• Four independent 2-input NAND gates

• Low-Power Schottky TTL technology

• High-speed switching performance

• Low power consumption

• Standard TTL input and output compatibility

• Built-in input clamp diodes

• Through-hole DIP-14 package

• Reliable digital logic operation

• Easy integration into digital circuits

• Suitable for combinational logic applications

Specifications -

• Product Type - Quad 2-Input NAND Gate Integrated Circuit

• Model - 74LS00

• Manufacturer - FSC

• Logic Family - Low-Power Schottky TTL (LS)

• Logic Function - NAND Gate

• Number of Gates - 4

• Inputs per Gate - 2

• Supply Voltage - Up to 5.25V

• Operating Temperature - 0°C to +70°C

• Number of Pins - 14

• Package Type - DIP-14

• Mounting Type - Through Hole

• Logic Compatibility - Standard TTL

Applications -

• Digital logic circuits

• Combinational logic design

• Logic control systems

• Clock and timing circuits

• Signal processing

• Embedded electronic systems

• Educational electronics projects

• Industrial control equipment

• Printed Circuit Board digital designs

• General-purpose TTL logic applications
