74LS04 Hex Inverter IC DIP-14 (TTL Logic Hex Inverter Integrated Circuit)

The 74LS04 is a high-speed Hex Inverter integrated circuit containing six independent NOT gates for digital logic inversion. Manufactured using Low-Power Schottky (LS) TTL technology, it delivers fast switching performance with low power consumption while maintaining compatibility with standard TTL logic levels. Packaged in a DIP-14 through-hole package, the 74LS04 is widely used in logic inversion, signal conditioning, waveform generation, clock circuits, and digital control applications.

Key Features -

• Six independent inverter (NOT gate) circuits

• High-speed Low-Power Schottky TTL technology

• Low power consumption

• High-speed switching performance

• Compatible with standard TTL logic levels

• Through-hole DIP-14 package

• Reliable digital signal inversion

• Suitable for combinational logic circuits

• Easy integration into digital systems

• Robust and dependable operation

Specifications -

• Product Type - Hex Inverter Integrated Circuit

• Model - 74LS04

• Manufacturer - National

• Logic Family - Low-Power Schottky TTL (LS)

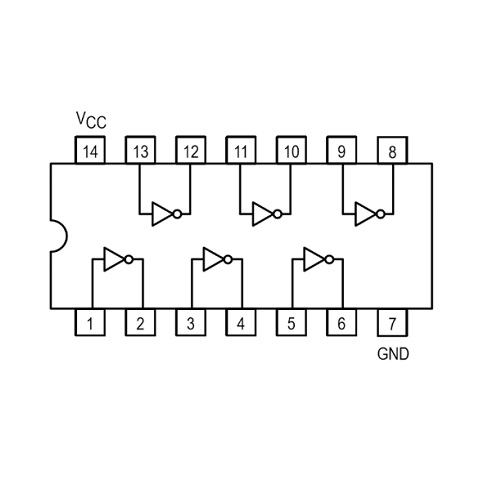

• Logic Function - Hex Inverter (6 NOT Gates)

• Number of Gates - 6

• Supply Voltage - 4.75V to 5.25V

• Number of Pins - 14

• Package Type - DIP-14

• Mounting Type - Through Hole

• Logic Compatibility - Standard TTL

Applications -

• Digital logic inversion

• Signal conditioning circuits

• Clock generation circuits

• Oscillator circuits

• Waveform shaping

• Logic level processing

• Digital control systems

• Embedded electronics

• Educational electronics projects

• Printed Circuit Board digital designs
