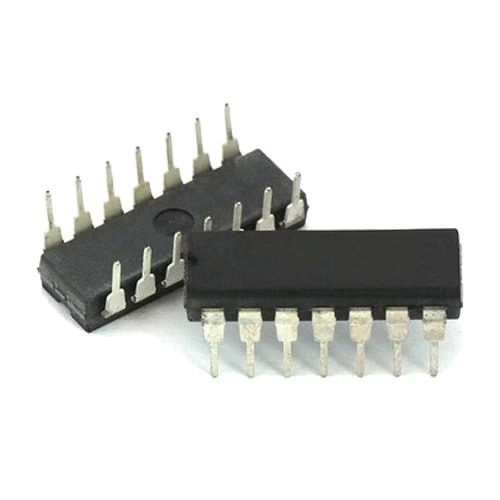

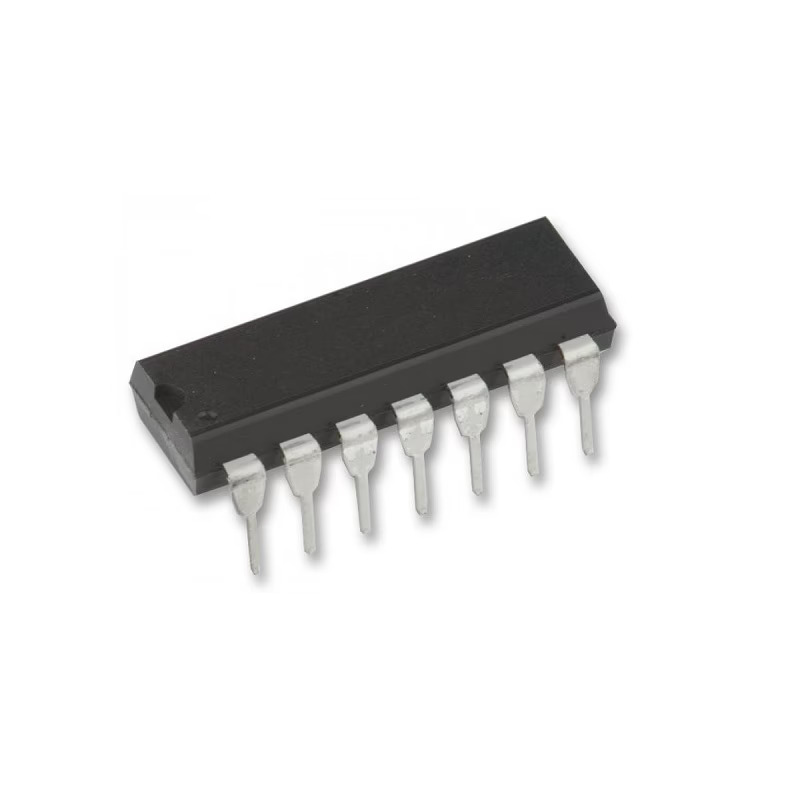

74LS11 DIP Triple 3 Input AND Gate IC (74LS11 TTL Logic IC)

The 74LS11 is a Triple 3-Input AND Gate IC from the Low Power Schottky TTL logic family. It contains three independent AND gates, each with three inputs, making it ideal for digital logic operations, control circuits, signal processing, industrial automation, and embedded electronic applications.

Key Features -

• Triple 3-input AND gate configuration

• Low Power Schottky TTL logic

• Three independent logic gates

• High-speed switching performance

• TTL compatible operation

• Low power consumption

• DIP through-hole package

Specifications -

• Product type - Logic Gate IC

• Model - 74LS11

• Logic family - Low Power Schottky TTL (LS)

• Function type - Triple 3-Input AND Gate

• Number of gates - 3

• Inputs per gate - 3

• Package type - DIP-14

• Mounting type - Through Hole Mount

• Supply voltage - 5V DC (Typical)

• Logic compatibility - TTL Compatible

• Material - Semiconductor integrated circuit

• Additional features - Reliable digital switching and high noise immunity for logic applications

Applications -

• Digital logic circuits

• Industrial automation systems

• Control and timing circuits

• Signal processing applications

• Embedded electronic systems

• Educational electronics projects

• Microcontroller interfacing circuits
