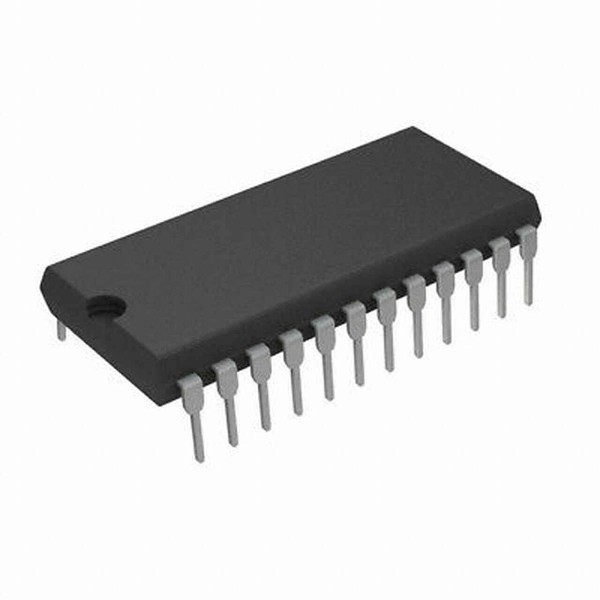

74LS150 16-to-1 Data Selector Multiplexer IC DIP-24 TTL Logic Chip (74LS150N, 5V, Low Power Schottky)

Description -

The 74LS150 DIP is a TTL logic integrated circuit that functions as a 16-to-1 data selector and multiplexer in a 24-pin Dual Inline Package (DIP). It belongs to the 74LS Low Power Schottky logic family and is designed to route one of sixteen data inputs to a single output based on the binary value applied to the four select inputs.

The device includes an active LOW strobe (enable) input. When enabled, the selected input is transferred to the inverted output. When the strobe input is HIGH, the output is forced HIGH regardless of the input states. The 74LS150 is widely used in data routing, signal selection, parallel-to-serial conversion, digital communication, and embedded control systems.

Key Features -

• 16-to-1 data selector and multiplexer

• Four binary select inputs

• Active LOW strobe (enable) input

• Inverted data output

• Low Power Schottky technology

• TTL compatible logic levels

• High-speed switching performance

• Standard DIP-24 package

Specifications -

• Product type - TTL Logic IC

• IC Model - 74LS150

• Logic Function - 16-to-1 Data Selector/Multiplexer

• Package type - DIP-24

• Logic family - 74LS TTL

• Operating voltage - 4.75V to 5.25V DC

• Number of data inputs - 16

• Number of select inputs - 4

• Output type - Inverted TTL Output

• Enable input - Active LOW Strobe

• Propagation delay - 23ns Typical

• High-level output current - -0.4mA

• Low-level output current - 8mA

• Input high voltage - 2.0V Minimum

• Operating temperature - 0C to 70C

Applications -

• Data selection and routing

• Signal multiplexing

• Parallel-to-serial data conversion

• Microprocessor systems

• Digital communication equipment

• Embedded system design

• Industrial automation

• Logic function generation
