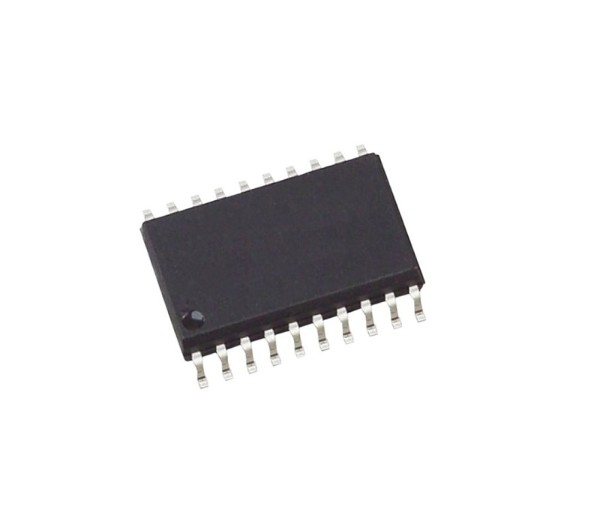

74LS244 200mil Octal Buffer Line Driver IC SMD SOIC20 (74LS244 SOIC 20 IC)
The 74LS244 200mil Octal Buffer Line Driver IC SMD SOIC20 is a high-speed TTL logic IC that features eight non inverting buffer drivers with 3 state outputs. It is designed for data bus buffering, signal driving, and memory interfacing applications, providing reliable and fast signal transmission. The 200mil narrow body SOIC 20 package allows compact PCB layout and efficient space utilization in modern electronic designs.
The 74LS244 SMD IC is widely used in India for microcontroller systems, digital electronics, embedded systems, and industrial automation circuits. It is valued for its strong drive capability, tri state outputs, and stable performance in high-speed data communication.
Key Features
- Octal Buffer Drivers: Eight independent non inverting buffers in one IC.
- 3 State Outputs: High impedance mode enables shared bus operation.
- High Drive Capability: Suitable for driving multiple loads.
- Non Inverting Logic: Maintains input signal polarity.
- Dual Enable Inputs: Independent control for output groups.
- SMD SOIC20 200mil Package: Narrow body for compact PCB design.
Specifications
- IC Type: Octal Buffer Line Driver IC
- Logic Family: LS TTL Logic
- Number of Buffers: 8
- Output Type: 3 State Output
- Logic Type: Non Inverting Buffer
- Operating Voltage: Standard TTL supply voltage
- Package Type: SOIC 20 SMD 200mil
- Mounting Type: Surface Mount
- Applications: Data bus buffering memory interfacing microcontroller systems digital electronics embedded systems industrial automation
Pinout Configuration (SOIC 20 Layout)
- Input pins for each buffer
- Output pins for each buffer
- Enable control pins
- VCC supply pin
- GND ground pin
- Refer to datasheet or circuit diagram for exact pin details
