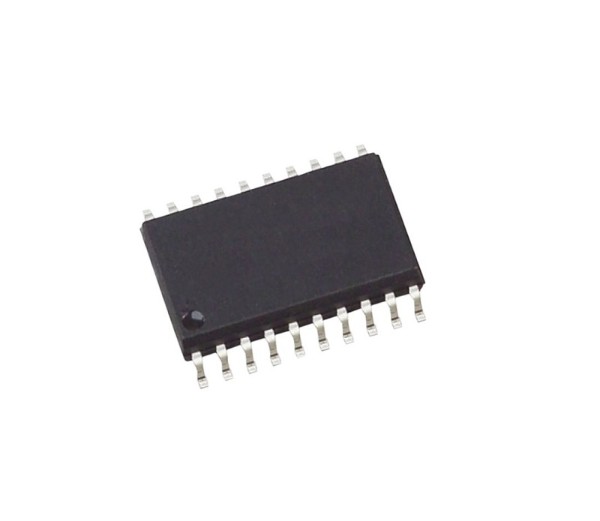

74LS244 300mil Octal Buffer Line Driver IC SMD SOIC20 (74LS244 SOIC 20 IC)
The 74LS244 300mil Octal Buffer Line Driver IC SMD SOIC20 is a high-speed TTL logic IC that features eight non inverting buffer drivers with 3 state outputs. It is designed for data bus buffering, signal driving, and memory interfacing applications, ensuring fast and reliable signal transmission. The 300mil wide body SOIC 20 package provides improved handling, thermal performance, and durability for industrial and high-reliability PCB designs.
The 74LS244 SMD IC is widely used in India for microcontroller systems, digital electronics, embedded systems, and industrial automation circuits. It is valued for its strong drive capability, tri state outputs, and stable performance in high-speed data communication environments.
Key Features
- Octal Buffer Drivers: Eight independent non inverting buffers in one IC.
- 3 State Outputs: High impedance mode enables shared bus operation.
- High Drive Capability: Suitable for driving multiple loads.
- Non Inverting Logic: Maintains input signal polarity.
- Dual Enable Inputs: Independent control for output groups.
- SMD SOIC20 300mil Package: Wide body for improved reliability and handling.
Specifications
- IC Type: Octal Buffer Line Driver IC
- Logic Family: LS TTL Logic
- Number of Buffers: 8
- Output Type: 3 State Output
- Logic Type: Non Inverting Buffer
- Operating Voltage: Standard TTL supply voltage
- Package Type: SOIC 20 SMD 300mil
- Mounting Type: Surface Mount
- Applications: Data bus buffering memory interfacing microcontroller systems digital electronics embedded systems industrial automation
Pinout Configuration (SOIC 20 Layout)
- Input pins for each buffer
- Output pins for each buffer
- Enable control pins
- VCC supply pin
- GND ground pin
- Refer to datasheet or circuit diagram for exact pin details
