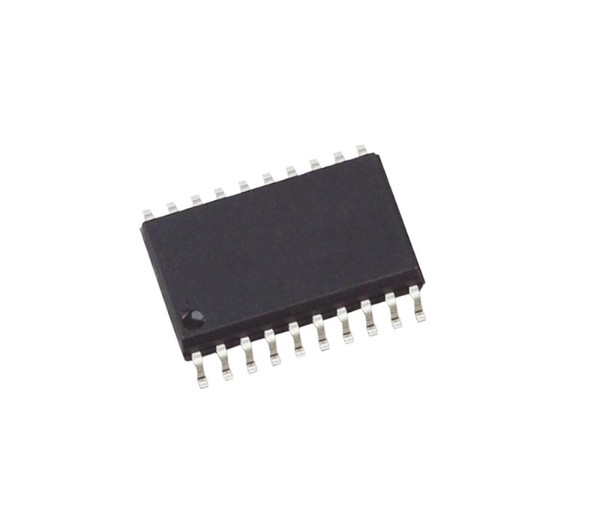

74LS245 300mil Octal Bus Transceiver IC SMD SOIC20 (74LS245 SOIC 20 IC)
The 74LS245 300mil Octal Bus Transceiver IC SMD SOIC20 is a high-speed TTL logic IC designed for bidirectional data communication between buses. It features eight non inverting bus transceivers with 3 state outputs, allowing controlled data flow in either direction. The 300mil wide body SOIC 20 package ensures better handling, thermal performance, and reliable PCB mounting in modern electronic systems.
The 74LS245 SMD IC is widely used in India for microcontroller interfacing, memory systems, digital electronics, and industrial automation. It is valued for its bidirectional data transfer capability, strong drive performance, and stable operation in high-speed communication circuits.
Key Features
- Octal Bus Transceiver: Eight bidirectional data lines in one IC.
- Bidirectional Data Flow: Direction control for transmit and receive.
- 3 State Outputs: High impedance mode for bus sharing.
- Non Inverting Logic: Maintains signal integrity.
- Enable Control: Allows bus isolation when required.
- SMD SOIC20 300mil Package: Wide body for improved reliability and handling.
Specifications
- IC Type: Octal Bus Transceiver IC
- Logic Family: LS TTL Logic
- Number of Channels: 8
- Data Direction: Bidirectional
- Output Type: 3 State Output
- Operating Voltage: Standard TTL supply voltage
- Package Type: SOIC 20 SMD 300mil
- Mounting Type: Surface Mount
- Applications: Data bus communication memory interfacing microcontroller systems digital electronics industrial automation
Pinout Configuration (SOIC 20 Layout)
- Data bus pins A and B
- Direction control pin
- Output enable pin
- VCC supply pin
- GND ground pin
- Refer to datasheet or circuit diagram for exact pin details
