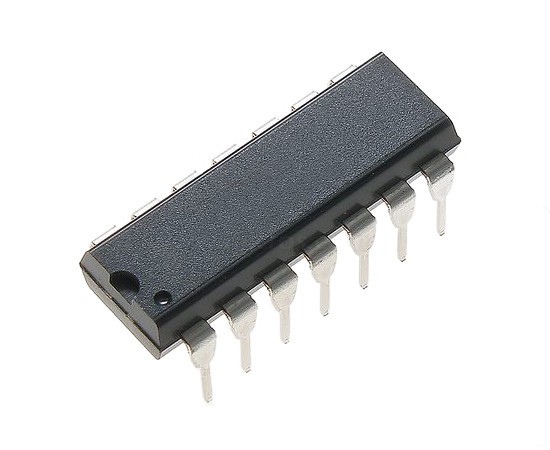

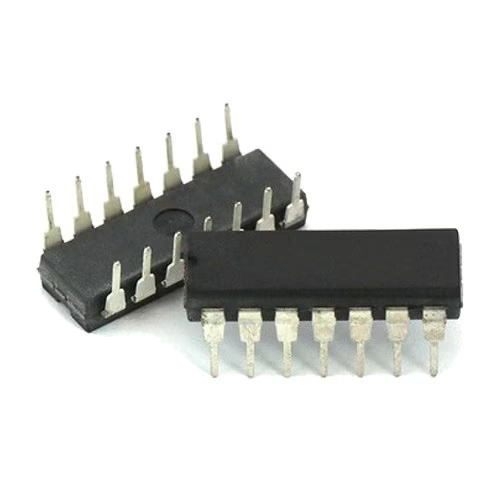

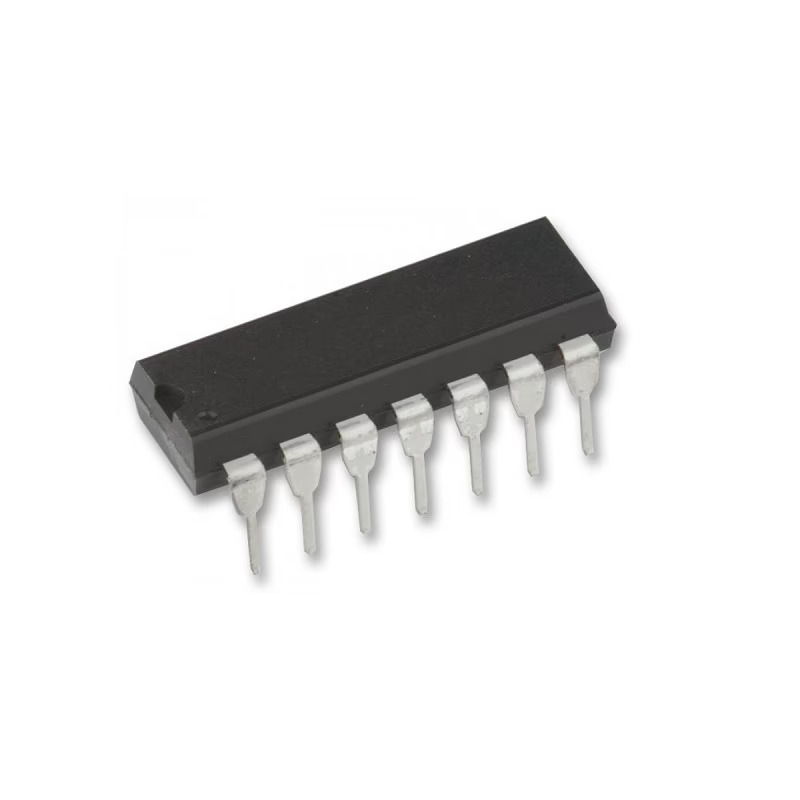

74LS25 DIP Dual 4-Input NOR Gate with Strobe IC (14-Pin TTL Logic IC)

The 74LS25 DIP Dual 4-Input NOR Gate with Strobe IC is a TTL logic integrated circuit that contains two independent 4-input NOR gates with strobe (enable) inputs in a 14-pin Dual Inline Package (DIP). Built using Low Power Schottky (LS) TTL technology, it provides high-speed switching, low power consumption, and reliable digital logic performance.

The integrated strobe inputs allow each NOR gate to be enabled or disabled, making the IC ideal for logic gating, control circuits, signal selection, combinational logic, embedded systems, and industrial automation. It is fully compatible with other devices in the 74LS TTL logic family.

Key Features -

• Two independent 4-input NOR gates

• Integrated strobe (enable) inputs

• TTL compatible logic levels

• Low Power Schottky (LS) technology

• 14-pin DIP package

• High-speed switching performance

• Low power consumption

• Compatible with 74LS series logic ICs

• Reliable and stable operation

• Suitable for control and gating applications

Specifications -

• Product type - TTL Logic IC

• IC model - 74LS25

• Logic function - Dual 4-Input NOR Gate with Strobe

• Logic family - 74LS TTL

• Package type - DIP-14

• Operating voltage - 5V DC

• Input type - TTL Compatible

• Output type - TTL Logic Output

• Mounting type - Through Hole (THT)

• Operating temperature - Standard Commercial Range

Applications -

• Digital logic circuits

• Combinational logic design

• Signal gating circuits

• Logic enable and control circuits

• Embedded systems

• Industrial automation systems

• Digital signal selection

• Microcontroller interface circuits

• Prototype PCB development

• DIY electronics projects
