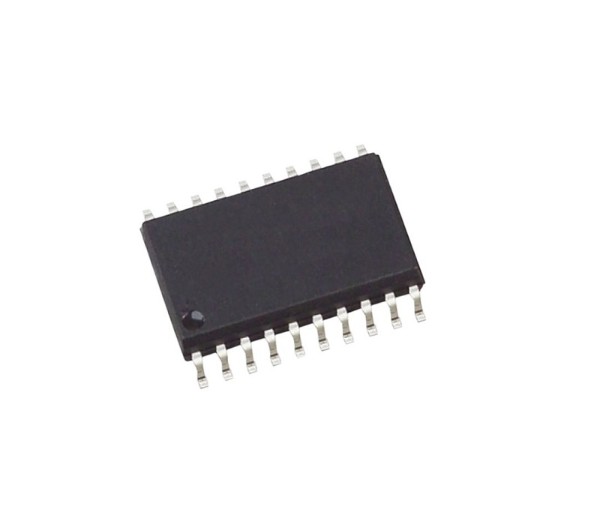

74LS273 300mil Octal D Type Flip Flop Register IC SMD SOIC20 (74LS273 SOIC 20 IC)
The 74LS273 300mil Octal D Type Flip Flop Register IC SMD SOIC20 is a high-speed TTL logic IC that features eight D type flip flops with common clock and clear inputs. It is designed for data storage, buffering, and synchronization in digital systems. The 300mil wide body SOIC 20 package ensures better handling, durability, and reliable PCB mounting in modern electronic applications.
The 74LS273 SMD IC is widely used in India for microcontroller systems, data registers, digital electronics, and embedded applications. It is valued for its stable data storage capability, fast clock response, and compatibility with standard TTL logic levels.
Key Features
- Octal D Flip Flops: Eight D type flip flops in one IC.
- Common Clock Input: Simultaneous data latching on clock edge.
- Clear Function: Asynchronous reset for all outputs.
- Non Inverting Outputs: Maintains data logic levels.
- High Speed TTL Logic: Fast switching and reliable operation.
- SMD SOIC20 300mil Package: Wide body for improved handling and reliability.
Specifications
- IC Type: Octal D Type Flip Flop Register IC
- Logic Family: LS TTL Logic
- Number of Flip Flops: 8
- Trigger Type: Positive Edge Triggered
- Control Inputs: Clock and clear
- Operating Voltage: Standard TTL supply voltage
- Package Type: SOIC 20 SMD 300mil
- Mounting Type: Surface Mount
- Applications: Data storage registers microcontroller interfacing digital electronics embedded systems
Pinout Configuration (SOIC 20 Layout)
- Data input pins D0 to D7
- Output pins Q0 to Q7
- Clock input pin
- Clear control pin
- VCC supply pin
- GND ground pin
- Refer to datasheet or circuit diagram for exact pin details
