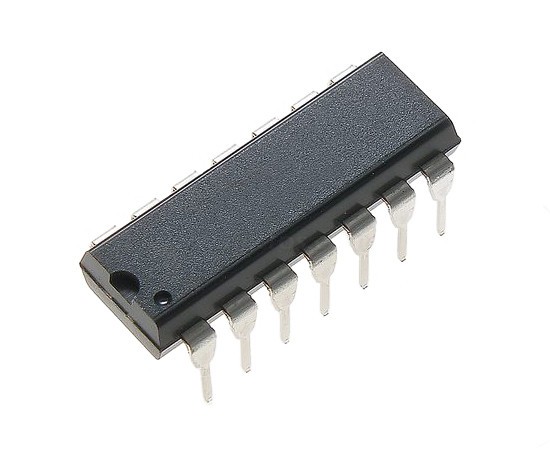

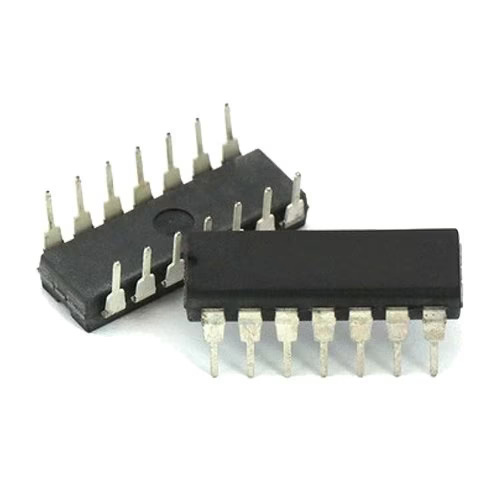

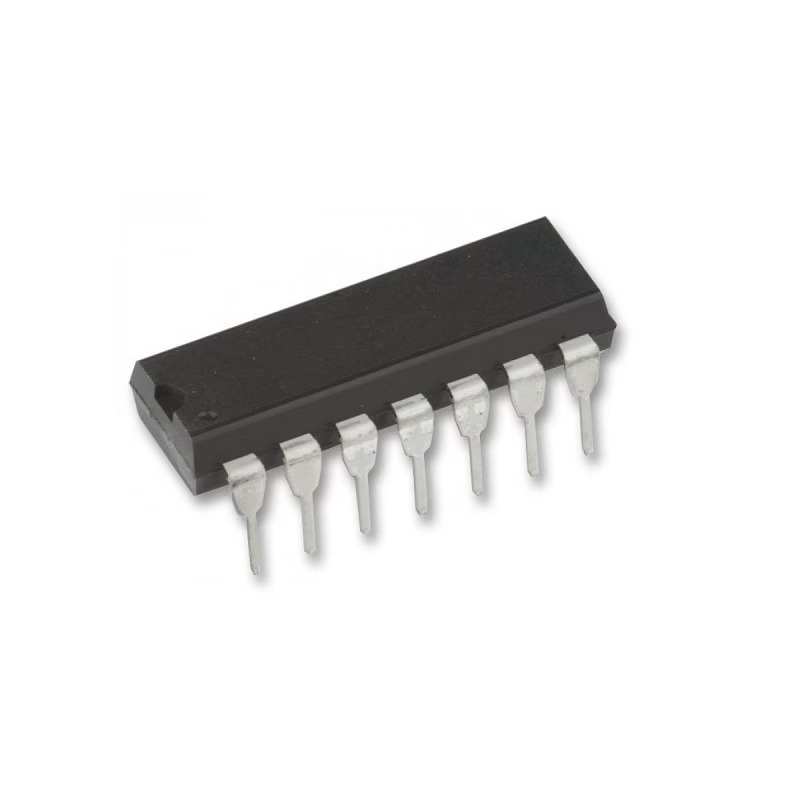

74LS32 DIP Quad 2-Input OR Gate IC (14-Pin TTL Logic IC)

The 74LS32 DIP Quad 2-Input OR Gate IC is a TTL logic integrated circuit that contains four independent 2-input OR gates in a 14-pin Dual Inline Package (DIP). Built using Low Power Schottky (LS) TTL technology, it provides high-speed switching, low power consumption, and reliable digital logic performance.

This IC is widely used in digital logic circuits, combinational logic design, signal combining, control logic, timing circuits, embedded systems, industrial automation, and educational electronics. It is fully compatible with other devices in the 74LS TTL logic family, making it ideal for a wide range of digital applications.

Key Features -

• Four independent 2-input OR gates

• TTL compatible logic levels

• Low Power Schottky (LS) technology

• 14-pin DIP package

• High-speed switching performance

• Low power consumption

• Compatible with 74LS series logic ICs

• Reliable and stable operation

• Easy PCB mounting

• Suitable for digital and embedded applications

Specifications -

• Product type - TTL Logic IC

• IC model - 74LS32

• Logic function - Quad 2-Input OR Gate

• Logic family - 74LS TTL

• Package type - DIP-14

• Operating voltage - 5V DC

• Input type - TTL Compatible

• Output type - TTL Logic Output

• Mounting type - Through Hole (THT)

• Operating temperature - Standard Commercial Range

Applications -

• Digital logic circuits

• Combinational logic design

• Signal combining circuits

• Control logic systems

• Timing circuits

• Embedded systems

• Industrial automation systems

• Microcontroller interface circuits

• Prototype PCB development

• DIY electronics projects
