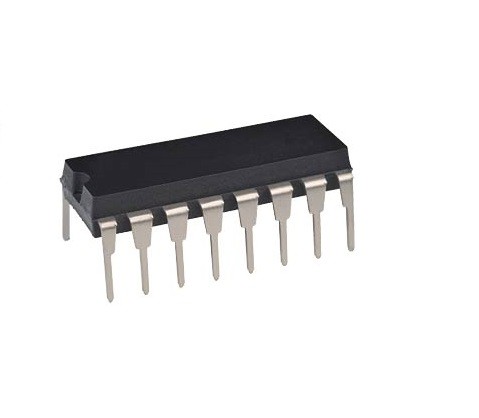

74LS367 DIP-16 Hex Buffer/Bus Driver IC (3-State Outputs, TTL, 5V)

Description -

The 74LS367 DIP is a TTL logic integrated circuit that functions as a hex non-inverting buffer and bus driver in a 16-pin Dual Inline Package (DIP). It belongs to the 74LS Low Power Schottky logic family and is designed for signal buffering, bus interfacing, and digital data transmission in high-speed electronic systems.

The device contains six non-inverting buffer channels with 3-state outputs and dual active LOW enable inputs, allowing independent control of buffer groups for efficient bus management. The 74LS367 is widely used in memory interfacing, microprocessor systems, data bus driving, and embedded applications.

Key Features -

• Hex non-inverting buffer and bus driver

• 3-state outputs for bus interfacing

• Dual active LOW enable inputs

• High-current output drive capability

• Low Power Schottky technology

• TTL compatible logic levels

• High-speed switching performance

• Standard DIP-16 package

Specifications -

• Product type - TTL Logic IC

• IC Model - 74LS367

• Logic Function - Hex Buffer and Bus Driver

• Package type - DIP-16

• Logic family - 74LS TTL

• Operating voltage - 4.75V to 5.25V DC

• Number of buffers - 6

• Output type - 3-State TTL

• Enable type - Dual Active LOW

• Typical propagation delay - 15ns

• Operating temperature - 0C to 70C

Applications -

• Bus interfacing

• Signal buffering

• Memory interfacing

• Microprocessor systems

• Data bus driving

• Embedded systems

• Industrial automation

• Digital communication systems
