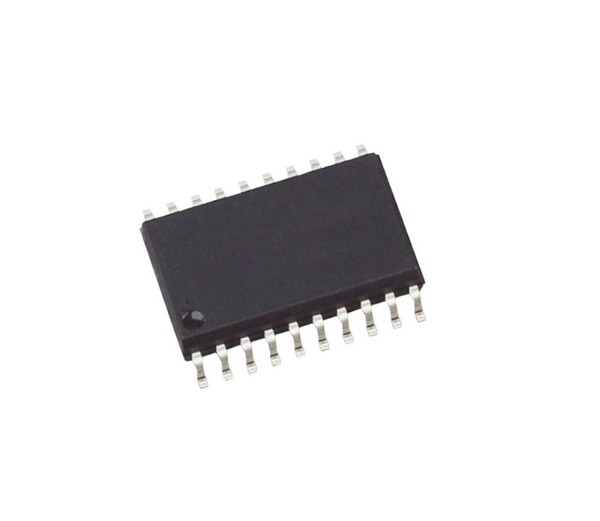

74LS373 300mil Octal Transparent Latch IC SMD SOIC20 (74LS373 SOIC 20 IC)
The 74LS373 300mil Octal Transparent Latch IC SMD SOIC20 is a high-speed TTL logic IC that features eight D type transparent latches with 3 state outputs. It is designed for data storage, buffering, and bus interfacing applications, allowing data to pass through when enabled and hold when disabled. The 300mil wide body SOIC 20 package ensures better handling, durability, and reliable PCB mounting in modern electronic systems.
The 74LS373 SMD IC is widely used in India for microcontroller systems, data latching, memory interfacing, and digital electronics. It is valued for its transparent latch operation, tri state outputs, and stable performance in high-speed applications.
Key Features
- Octal Transparent Latches: Eight D type latches in one IC.
- Transparent Mode: Data passes through when latch enable is active.
- 3 State Outputs: High impedance mode for bus sharing.
- Output Enable Control: Allows isolation of outputs.
- High Speed TTL Logic: Fast and reliable operation.
- SMD SOIC20 300mil Package: Wide body for improved handling and reliability.
Specifications
- IC Type: Octal Transparent Latch IC
- Logic Family: LS TTL Logic
- Number of Latches: 8
- Control Inputs: Latch enable and output enable
- Output Type: 3 State Output
- Operating Voltage: Standard TTL supply voltage
- Package Type: SOIC 20 SMD 300mil
- Mounting Type: Surface Mount
- Applications: Data latching memory interfacing microcontroller systems digital electronics embedded systems
Pinout Configuration (SOIC 20 Layout)
- Data input pins D0 to D7
- Output pins Q0 to Q7
- Latch enable pin
- Output enable pin
- VCC supply pin
- GND ground pin
- Refer to datasheet or circuit diagram for exact pin details
