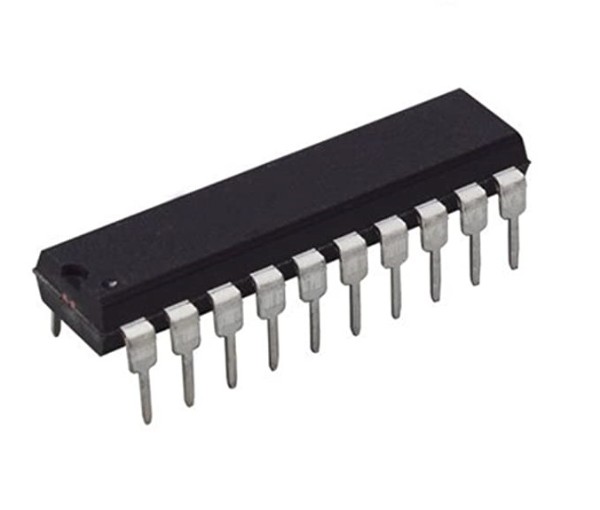

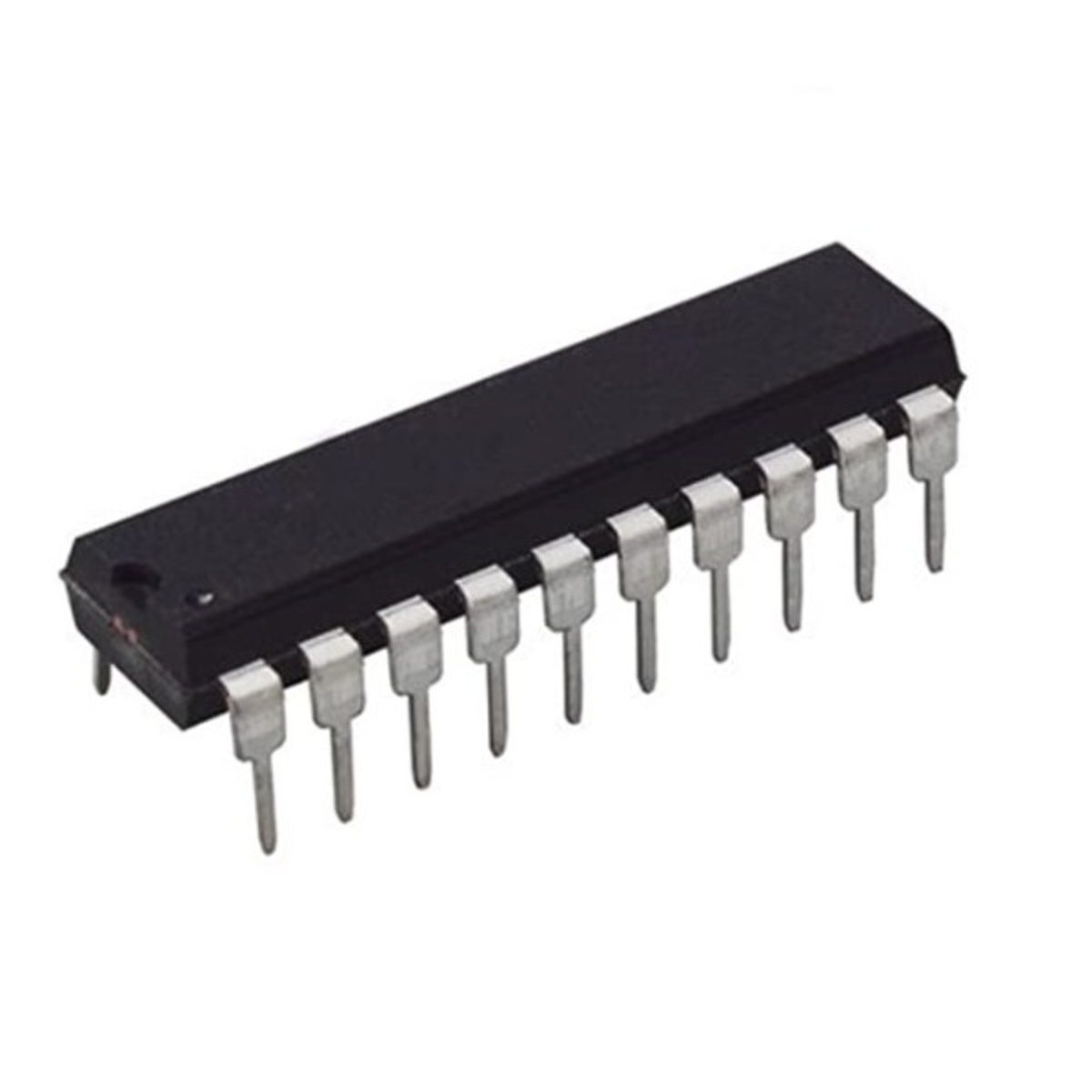

74LS373 DIP-20 Octal Transparent Latch IC (3-State Outputs, TTL, 5V)

Description -

The 74LS373 DIP is a TTL logic integrated circuit that functions as an octal transparent D-type latch in a 20-pin Dual Inline Package (DIP). It belongs to the 74LS Low Power Schottky logic family and is designed for data storage, buffering, and bus interfacing in digital systems.

The device contains eight transparent D-type latches that allow input data to pass directly to the outputs while the Latch Enable (LE) input is HIGH. When the latch is disabled, the previously stored data is retained. The 3-state outputs, controlled by an active LOW Output Enable (OE) input, make the 74LS373 ideal for microprocessor systems, memory interfacing, and shared data bus applications.

Key Features -

• Octal transparent D-type latches

• Transparent latch operation

• 3-state outputs for bus interfacing

• Active HIGH latch enable

• Active LOW output enable

• Low Power Schottky technology

• TTL compatible logic levels

• Standard DIP-20 package

Specifications -

• Product type - TTL Logic IC

• IC Model - 74LS373

• Logic Function - Octal Transparent D-Type Latch

• Package type - DIP-20

• Logic family - 74LS TTL

• Operating voltage - 4.75V to 5.25V DC

• Number of latches - 8

• Latch type - Transparent D-Type

• Output type - 3-State TTL

• Latch enable - Active HIGH

• Output enable - Active LOW

• Typical propagation delay - 20ns

• Operating temperature - 0C to 70C

Applications -

• Data latching

• Data buffering

• Bus interfacing

• Memory interfacing

• Microprocessor systems

• Embedded systems

• Industrial automation

• Digital control circuits
