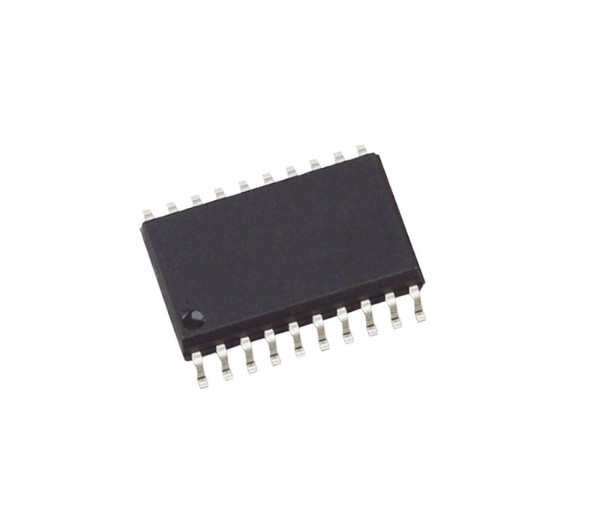

74LS374 300mil Octal D Type Flip Flop IC SMD SOIC20 (74LS374 SOIC 20 IC)
The 74LS374 300mil Octal D Type Flip Flop IC SMD SOIC20 is a high speed TTL logic IC featuring eight edge triggered D type flip flops with 3 state outputs. It is designed for data storage, synchronization, and bus interfacing applications where stable and controlled data transfer is required. The 300mil wide body SOIC 20 package ensures strong PCB mounting, durability, and consistent performance in compact electronic designs.
The 74LS374 SMD IC is widely used in India for embedded systems, register storage, data buffering, and digital electronics. It is valued for its edge triggered operation, tri state outputs, and reliable performance in high speed industrial electronics applications.
Key Features
- Octal D Type Flip Flops: Eight independent storage elements in one IC.
- Edge Triggered Operation: Data captured on clock transition.
- 3 State Outputs: High impedance mode for bus interfacing.
- Output Enable Control: Allows output isolation.
- High Speed TTL Logic: Fast and stable switching performance.
- SMD SOIC20 300mil Package: Wide body for better handling and reliability.
Specifications
- IC Type: Octal D Type Flip Flop IC
- Logic Family: LS TTL Logic
- Number of Flip Flops: 8
- Control Inputs: Clock and output enable
- Output Type: 3 State Output
- Operating Voltage: Standard TTL supply voltage
- Package Type: SOIC 20 SMD 300mil
- Mounting Type: Surface Mount
- Applications: Data storage register buffering microcontroller systems digital electronics embedded systems industrial electronics
Pinout Configuration (SOIC 20 Layout)
- Data input pins D0 to D7
- Output pins Q0 to Q7
- Clock input pin
- Output enable pin
- VCC supply pin
- GND ground pin
