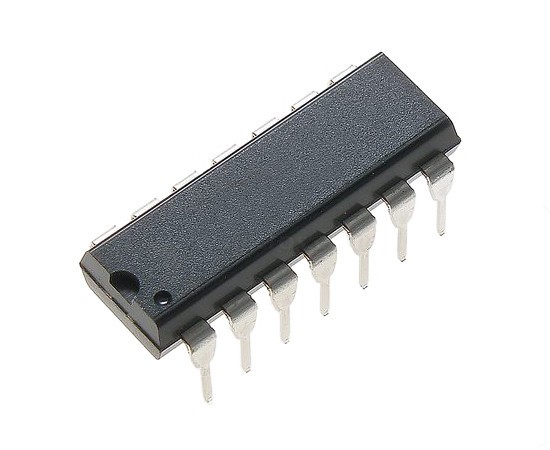

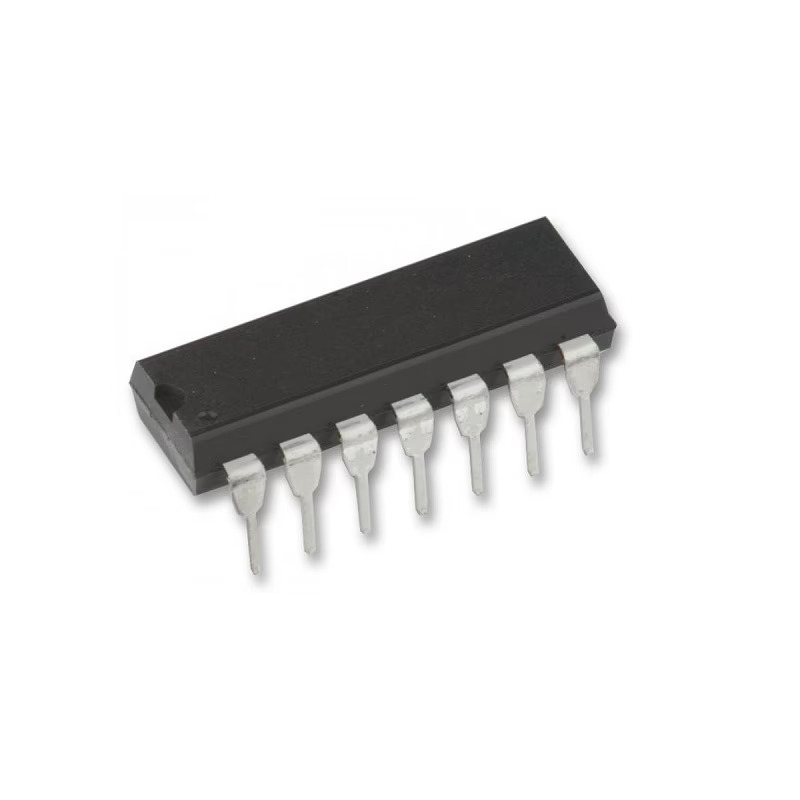

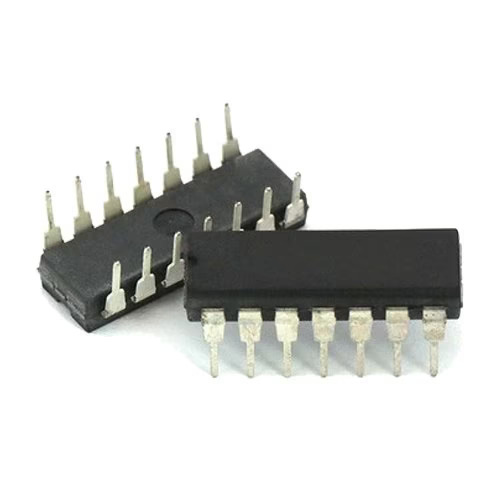

74LS73 DIP Dual J-K Flip-Flop with Clear IC (14-Pin TTL Logic IC)

The 74LS73 DIP Dual J-K Flip-Flop with Clear IC is a TTL logic integrated circuit that contains two independent J-K flip-flops with asynchronous clear inputs in a 14-pin Dual Inline Package (DIP). Built using Low Power Schottky (LS) TTL technology, it provides high-speed switching, low power consumption, and reliable sequential logic operation.

The asynchronous clear input allows each flip-flop to be reset immediately, independent of the clock signal, making the IC ideal for counters, frequency dividers, registers, timing circuits, memory elements, and digital control systems. It is fully compatible with other devices in the 74LS TTL logic family.

Key Features -

• Dual independent J-K flip-flops

• Asynchronous clear inputs

• TTL compatible logic levels

• Low Power Schottky (LS) technology

• 14-pin DIP package

• High-speed switching performance

• Reliable sequential logic operation

• Compatible with 74LS series logic ICs

• Easy PCB mounting

• Suitable for counters and timing applications

Specifications -

• Product type - TTL Sequential Logic IC

• IC model - 74LS73

• Logic function - Dual J-K Flip-Flop with Asynchronous Clear

• Logic family - 74LS TTL

• Package type - DIP-14

• Operating voltage - 5V DC

• Trigger type - Edge Triggered Clock

• Clear type - Asynchronous Clear

• Mounting type - Through Hole (THT)

• Operating temperature - Standard Commercial Range

Applications -

• Binary counters

• Frequency divider circuits

• Shift registers

• Digital memory elements

• Timing and sequencing circuits

• Embedded systems

• Industrial automation systems

• Educational electronics projects

• Prototype PCB development

• DIY electronics projects
