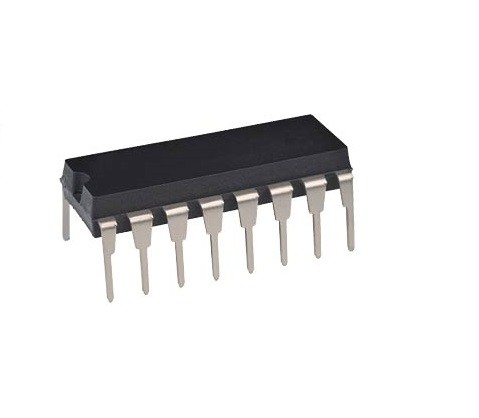

74LS83 DIP 4-Bit Binary Full Adder with Fast Carry IC (16-Pin TTL Logic IC)

The 74LS83 DIP 4-Bit Binary Full Adder with Fast Carry IC is a TTL logic integrated circuit designed to perform 4-bit binary addition with fast carry propagation in a 16-pin Dual Inline Package (DIP). Built using Low Power Schottky (LS) TTL technology, it provides high-speed arithmetic processing, low power consumption, and reliable digital performance.

The IC adds two 4-bit binary numbers along with a carry input (Cin) and produces a 4-bit sum output and a carry output (Cout). Its fast carry architecture enables efficient cascading of multiple devices for higher-bit arithmetic operations, making it ideal for ALUs, counters, digital calculators, microprocessor systems, and embedded electronics.

Key Features -

• 4-bit binary full adder

• Fast carry propagation for high-speed arithmetic

• Carry input and carry output support

• TTL compatible logic levels

• Low Power Schottky (LS) technology

• 16-pin DIP package

• High-speed arithmetic processing

• Compatible with 74LS series logic ICs

• Easily expandable for higher-bit addition

• Suitable for arithmetic and ALU applications

Specifications -

• Product type - TTL Arithmetic Logic IC

• IC model - 74LS83

• Logic function - 4-Bit Binary Full Adder

• Logic family - 74LS TTL

• Package type - DIP-16

• Operating voltage - 5V DC

• Number of bits - 4

• Carry input - Yes (Cin)

• Carry output - Yes (Cout)

• Mounting type - Through Hole (THT)

• Operating temperature - Standard Commercial Range

Applications -

• Arithmetic Logic Units (ALUs)

• Digital calculators

• Binary counters

• Microprocessor systems

• Embedded systems

• Digital signal processing circuits

• Industrial automation systems

• Educational electronics projects

• Prototype PCB development

• DIY electronics projects
