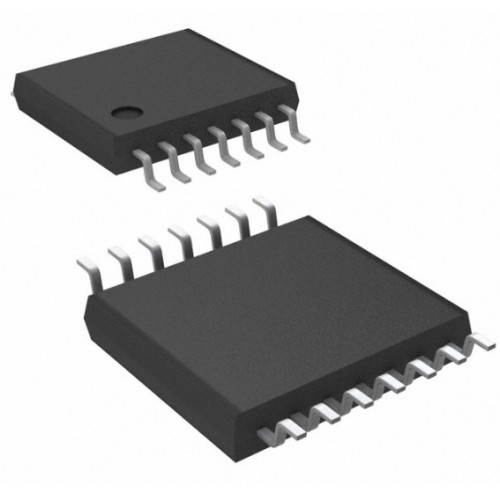

74LVC125APW Quad Bus Buffer IC TSSOP-14 (Tri-State Buffer IC, Logic Level Buffer, CMOS Logic IC)

The 74LVC125APW is a high-performance Quad Bus Buffer IC featuring four independent non-inverting buffers with 3-state outputs. Built using Low Voltage CMOS (LVC) technology, this device is designed for signal buffering, logic level interfacing, bus driving, and digital signal isolation applications. Its TSSOP-14 package makes it ideal for compact embedded systems, communication equipment, industrial electronics, and high-speed digital circuits.

Key Features -

• Four independent non-inverting buffers

• 3-state output control

• Low Voltage CMOS technology

• High-speed signal processing

• Low power consumption

• High noise immunity

• TSSOP-14 surface mount package

Specifications -

• Product type - Buffer IC

• Model - 74LVC125APW

• Logic family - LVC CMOS

• Function - Quad Bus Buffer with 3-State Outputs

• Number of buffers - 4

• Output type - Non-Inverting Tri-State

• Package type - TSSOP-14

• Mounting type - Surface Mount Device (SMD)

• Operating voltage - 1.65V to 5.5V

• Logic compatibility - TTL and CMOS compatible

• Additional features - High-speed operation and low static power consumption

Applications -

• Digital signal buffering

• Logic level translation

• Microcontroller interfacing

• Bus driving applications

• Communication equipment

• Embedded systems

• Industrial automation electronics
