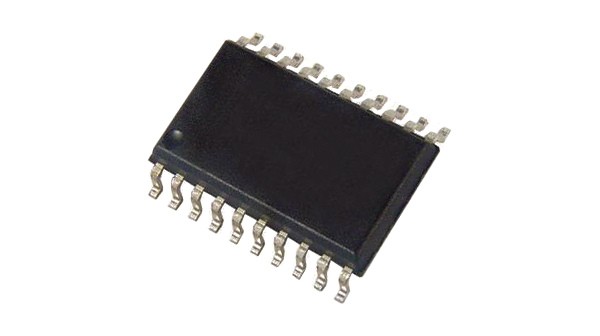

74LVC244AD Octal Buffer Line Driver IC SMD SOIC20 (74LVC244AD SOIC 20 IC)
The 74LVC244AD Octal Buffer Line Driver IC SMD SOIC20 is a high speed CMOS logic IC that features eight non inverting buffer drivers with 3 state outputs. It is designed for data buffering, signal amplification, and bus driving in low voltage digital systems. The SOIC20 SMD package ensures compact PCB layout, strong mounting, and reliable high performance operation.
The 74LVC244AD SMD IC is widely used in India for embedded systems, microcontroller interfacing, memory addressing, and industrial electronics. It is valued for its low power consumption, high drive capability, and excellent signal integrity in high speed applications.
Key Features
- Octal Buffer Drivers: Eight non inverting buffers
- 3 State Outputs: High impedance mode for bus interfacing
- Dual Output Enable Control: Flexible control of output groups
- Low Voltage CMOS Operation: Suitable for modern digital systems
- High Drive Capability: Strong output current support
- SMD SOIC20 Package: Compact and reliable design
Specifications
- IC Type: Octal Buffer Line Driver IC
- Logic Family: LVC CMOS Logic
- Number of Channels: 8
- Output Type: 3 State Output
- Control Inputs: Dual output enable
- Operating Voltage: Low voltage CMOS range
- High Noise Immunity: Stable and clean signal output
- Package Type: SOIC 20 SMD
- Mounting Type: Surface Mount
- Applications: Signal buffering bus driving memory interfacing microcontroller systems embedded systems industrial electronics
Pinout Configuration SOIC20 Layout
- Input pins for eight buffer channels
- Output pins for each buffer
- Dual output enable control pins
- VCC supply pin
- GND ground pin
