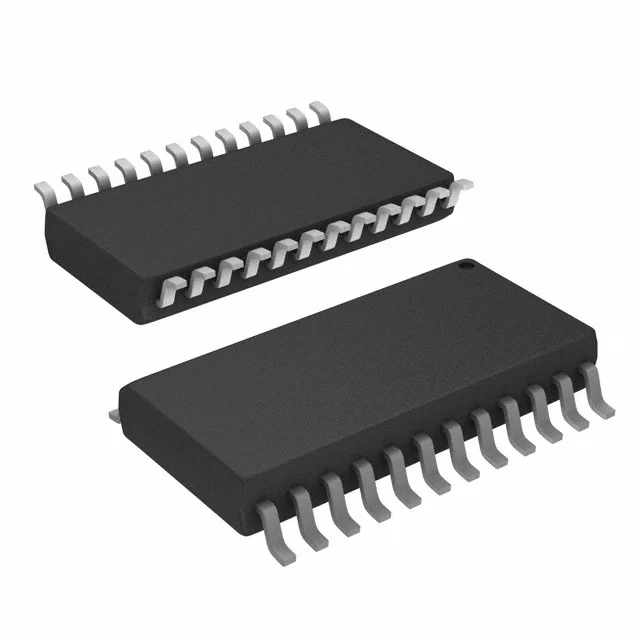

74LVC4245AD Octal Dual Supply Bus Transceiver IC SMD SOIC24 (74LVC4245AD SOIC 24 IC)
The 74LVC4245AD Octal Dual Supply Bus Transceiver IC SMD SOIC24 is a high speed CMOS logic IC designed for bidirectional data transfer between two voltage domains. It features eight non inverting transceiver channels with dual supply capability, enabling safe level shifting between different logic voltages. The SOIC24 SMD package ensures reliable PCB mounting and stable performance in compact electronic systems.
The 74LVC4245AD SMD IC is widely used in India for embedded systems, microcontroller interfacing, level shifting, and industrial electronics. It is valued for its dual supply operation, efficient voltage translation, and high speed performance in modern digital applications.
Key Features
- Octal Bus Transceiver: Eight bidirectional channels
- Dual Supply Operation: Supports two different voltage domains
- Level Shifting Capability: Safe voltage translation between systems
- Direction Control: Controls data flow between buses
- 3 State Outputs: High impedance mode for bus sharing
- SMD SOIC24 Package: Compact and reliable surface mount design
Specifications
- IC Type: Octal Dual Supply Bus Transceiver IC
- Logic Family: LVC CMOS Logic
- Number of Channels: 8
- Dual Supply Voltage: Supports two independent supply inputs
- Direction Control: Yes
- Output Type: 3 State Output
- Operating Voltage: Low voltage CMOS range
- High Speed Operation: Fast signal transmission
- Package Type: SOIC 24 SMD
- Mounting Type: Surface Mount
- Applications: Level shifting bus interfacing data transfer microcontroller systems embedded systems industrial electronics
Pinout Configuration SOIC24 Layout
- Bidirectional data pins for eight channels
- Dual supply pins for voltage domains
- Direction control pin
- Output enable control pin
- VCC supply pins
- GND ground pin
