7805 D2PAK SMD IC 5V Voltage Regulator Positive Linear Regulator High Current IC (7805 D2PAK IC)

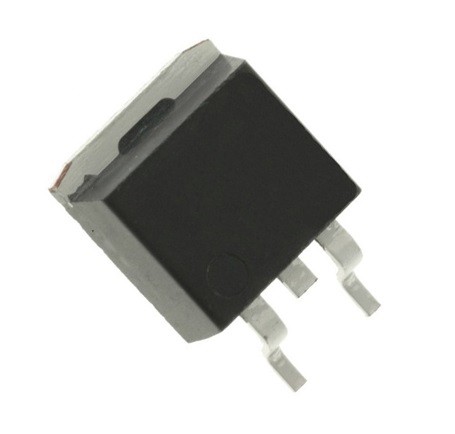

The 7805 in D2PAK (TO-263) package is a high current positive linear voltage regulator designed to deliver a stable 5V output from a higher DC input voltage. It is widely used in power supply circuits, embedded systems, and industrial electronics.

Key Features -

• Fixed 5V regulated output
• High current capability up to 1A (with proper heat dissipation)
• D2PAK (TO-263) SMD package for better thermal performance
• Built-in thermal shutdown protection
• Short circuit protection
• Reliable and stable output voltage

Specifications -

• IC type - positive linear voltage regulator
• Model - 7805
• Output voltage - 5V fixed
• Output current - up to 1A (with heatsinking)
• Input voltage - up to approx 35V max
• Dropout voltage - approx 2V typical
• Package type - D2PAK (TO-263) SMD
• Operating temperature - approx -40 to 125°C

Applications -

• Power supply circuits
• Microcontroller and embedded systems
• Industrial electronics
• Battery operated devices
• DIY electronics and prototyping
• Communication and control systems

Pinout Configuration -

• Pin 1 - input voltage
• Pin 2 - ground
• Pin 3 - regulated 5V output
• Tab - connected internally to ground (for heat dissipation)
