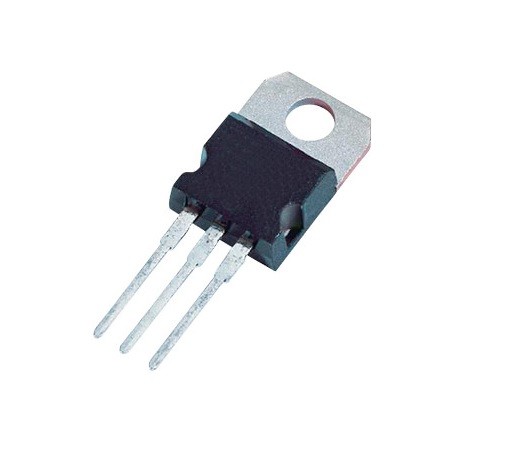

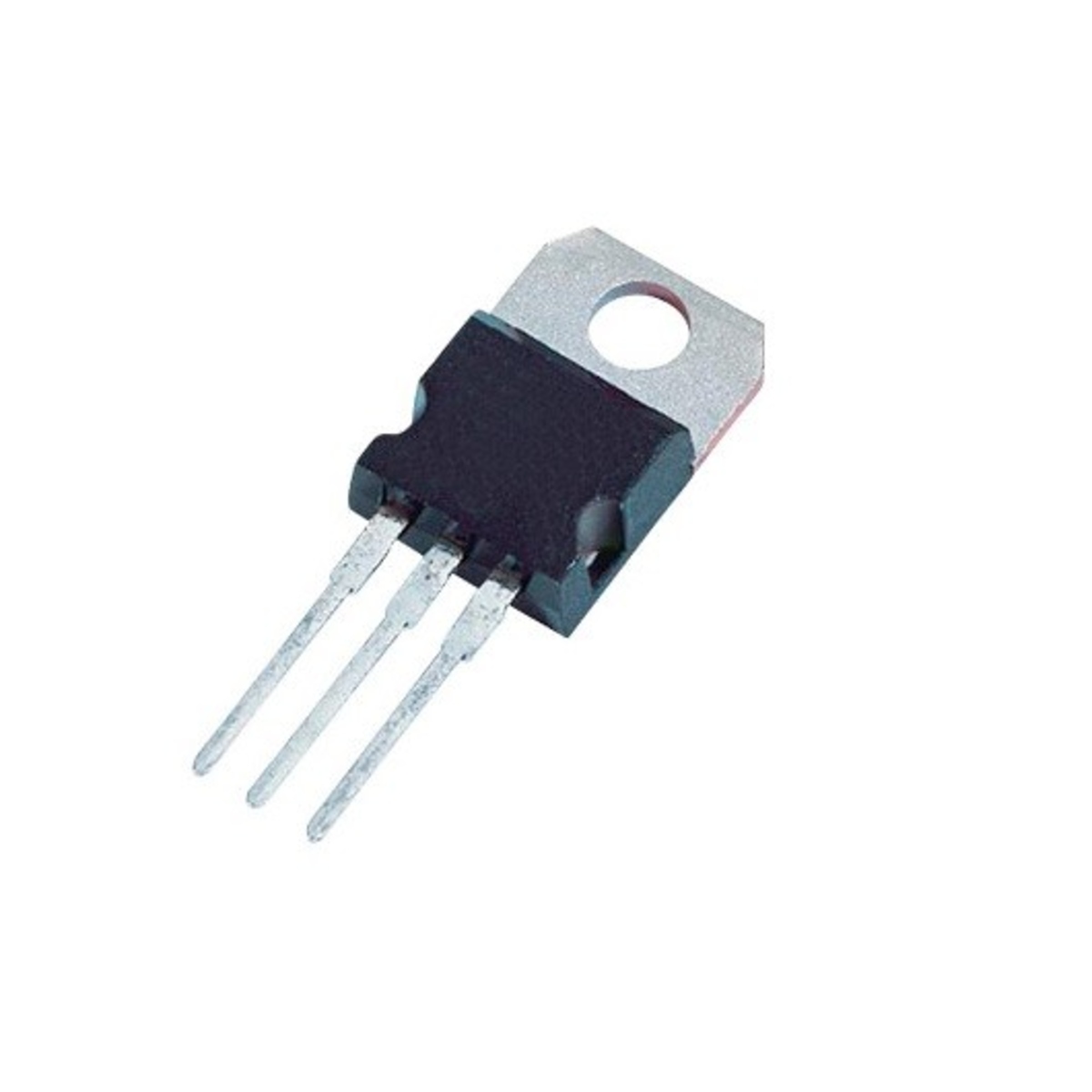

7808 8V Voltage Regulator IC TO-220 Positive Linear Regulator (LM7808 IC)

The 7808 is a fixed positive voltage regulator IC designed to provide a stable 8V output for power supplies, embedded systems, industrial electronics, and general-purpose electronic circuits. Housed in a TO-220 package, it offers reliable voltage regulation with built-in protection features, making it ideal for powering sensitive electronic components.

Key Features -

• Fixed 8V output voltage

• Positive linear voltage regulator

• TO-220 through hole package

• Output current up to 1A

• Excellent line and load regulation

• Built-in thermal overload protection

• Short circuit protection

• Internal safe operating area protection

• Simple three-terminal design

• Reliable long-term performance

Specifications -

• Product type - Voltage Regulator IC

• Model - 7808

• Output voltage - 8V

• Output current - Up to 1A

• Regulator type - Positive Fixed Linear Regulator

• Package type - TO-220

• Mounting type - Through Hole

• Number of pins - 3

• Protection features - Thermal Overload and Short Circuit Protection

• Input voltage - Higher Than 8V Output Requirement

• Application - Regulated Power Supply

Applications -

• Power supply circuits

• Embedded systems

• Industrial control equipment

• Battery-powered devices

• Communication systems

• Consumer electronics

• Microcontroller projects

• DIY electronic applications
