7809 9V Voltage Regulator TO 3 IC (7809 IC)

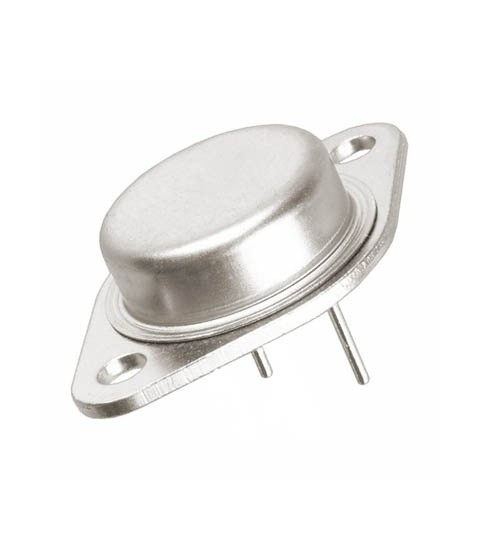

The 7809 is a linear voltage regulator designed to provide a stable 9V output from a higher input voltage. It is available in a TO 3 metal package for high power applications with efficient heat dissipation.

This IC is used in power supply units, industrial systems, and electronic circuits where regulated 9V output is required. It ensures stable operation with built in protection features.

Key Features

• Fixed 9V output voltage
• High power TO 3 metal package
• Improved heat dissipation capability
• Built in thermal protection
• Short circuit protection
• Suitable for high current applications

Specifications

• IC Type = Linear Voltage Regulator
• Output Voltage = 9V
• Input Voltage = 11V to 35V
• Output Current = Up to 1.5A
• Package Type = TO 3
• Operating Temperature = -40C to +125C

Interfaces

• VIN = Input voltage
• GND = Ground
• VOUT = Regulated output voltage
