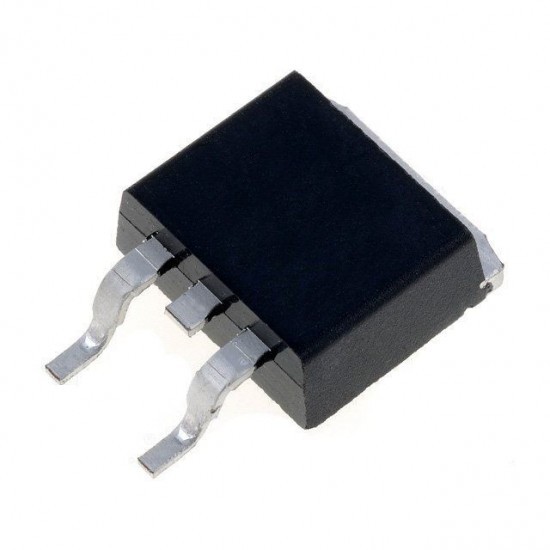

7809 D2PAK SMD IC 9V Voltage Regulator Positive Linear Regulator High Current IC (7809 D2PAK IC)
₹ 29.50 (Inclusive of 18.00% GST)
Base Price: ₹ 25.00 | GST (18.00%): ₹ 4.50
In Stock
Secure payments powered by Razorpay




Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email
7809 D2PAK SMD IC 9V Voltage Regulator Positive Linear Regulator High Current IC (7809 D2PAK IC)
The 7809 in D2PAK (TO-263) package is a high current positive linear voltage regulator designed to provide a stable 9V output from a higher DC input voltage. It is widely used in power supply circuits, industrial electronics, and embedded systems requiring reliable voltage regulation.
Key Features -
- Fixed 9V regulated output
- High current capability up to 1A (with proper heat dissipation)
- D2PAK (TO-263) SMD package for superior thermal performance
- Built-in thermal shutdown protection
- Short circuit protection
- Stable and low noise output
Specifications -
- IC type - positive linear voltage regulator
- Model - 7809
- Output voltage - 9V fixed
- Output current - up to 1A (with heatsinking)
- Input voltage - up to approx 35V max
- Dropout voltage - approx 2V typical
- Package type - D2PAK (TO-263) SMD
- Operating temperature - approx -40 to 125°C
Applications -
- Power supply circuits
- Embedded and microcontroller systems
- Industrial control equipment
- Audio and communication systems
- Consumer electronics
- DIY electronics and prototyping
Pinout Configuration -
- Pin 1 - input voltage
- Pin 2 - ground
- Pin 3 - regulated 9V output
- Tab - internally connected to ground (heat dissipation)
