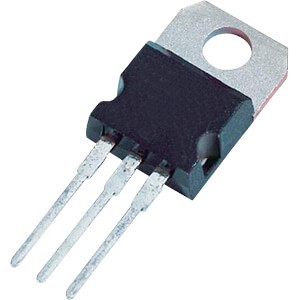

7815 15V Voltage Regulator TO 220 IC (7815 IC)

The 7815 is a linear voltage regulator designed to provide a stable 15V output from a higher input voltage. It is available in a TO 220 package suitable for medium power applications with effective heat dissipation.

This IC is used in power supply circuits, industrial electronics, and embedded systems where regulated 15V output is required. It ensures stable operation with built in protection features.

Key Features

• Fixed 15V output voltage
• Output current up to 1A
• TO 220 package for heat dissipation
• Built in thermal protection
• Short circuit protection
• Suitable for power supply applications

Specifications

• IC Type = Linear Voltage Regulator
• Output Voltage = 15V
• Input Voltage = 17V to 35V
• Output Current = Up to 1A
• Package Type = TO 220
• Operating Temperature = -40C to +125C

Interfaces

• VIN = Input voltage
• GND = Ground
• VOUT = Regulated output voltage
