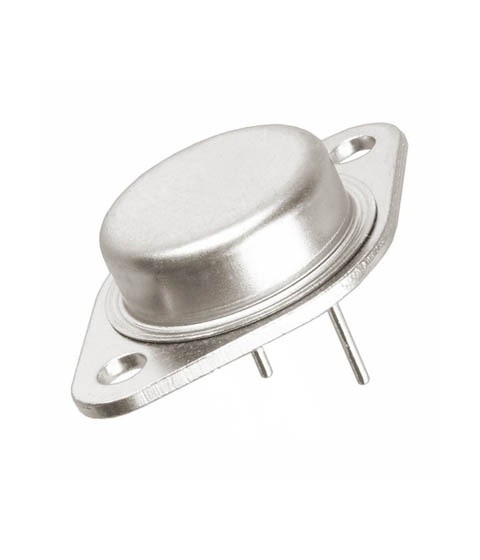

7824 24V Voltage Regulator TO 3 IC (7824 IC)

The 7824 is a linear voltage regulator designed to provide a stable 24V output from a higher input voltage. It is available in a TO 3 metal package for high power applications with efficient heat dissipation.

This IC is used in power supply units, industrial systems, and electronic circuits where regulated 24V output is required. It ensures stable operation with built in protection features.

Key Features

• Fixed 24V output voltage
• High power TO 3 metal package
• Improved heat dissipation capability
• Built in thermal protection
• Short circuit protection
• Suitable for high current applications

Specifications

• IC Type = Linear Voltage Regulator
• Output Voltage = 24V
• Input Voltage = 27V to 40V
• Output Current = Up to 1.5A
• Package Type = TO 3
• Operating Temperature = -40C to +125C

Interfaces

• VIN = Input voltage
• GND = Ground
• VOUT = Regulated output voltage
