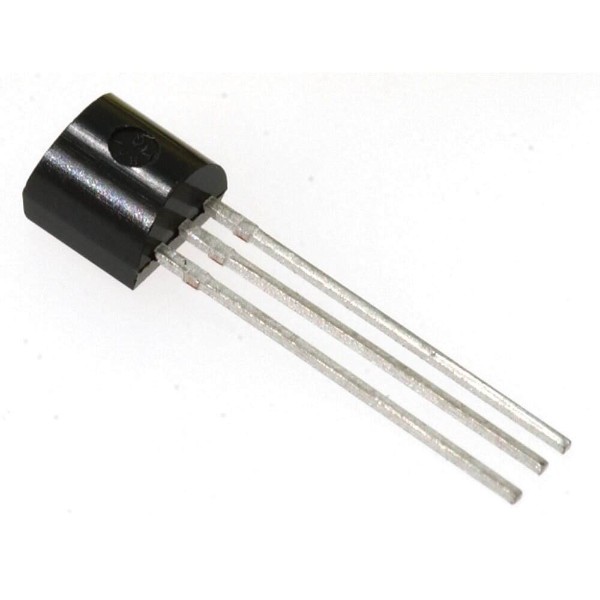

78L12 12V Voltage Regulator TO 92 IC (78L12 IC)

The 78L12 is a low current linear voltage regulator designed to provide a stable 12V output from a higher input voltage. It is available in a compact TO 92 package suitable for space constrained applications.

This IC is used in power supply circuits, embedded systems, and electronic devices where regulated 12V output is required. It ensures stable operation with built in protection features.

Key Features

• Fixed 12V output voltage
• Low current linear regulator
• Compact TO 92 package
• Built in thermal protection
• Short circuit protection
• Suitable for low power applications

Specifications

• IC Type = Linear Voltage Regulator
• Output Voltage = 12V
• Input Voltage = 14V to 30V
• Output Current = 100mA
• Package Type = TO 92
• Operating Temperature = -40C to +125C

Interfaces

• VIN = Input voltage
• GND = Ground
• VOUT = Regulated output voltage
