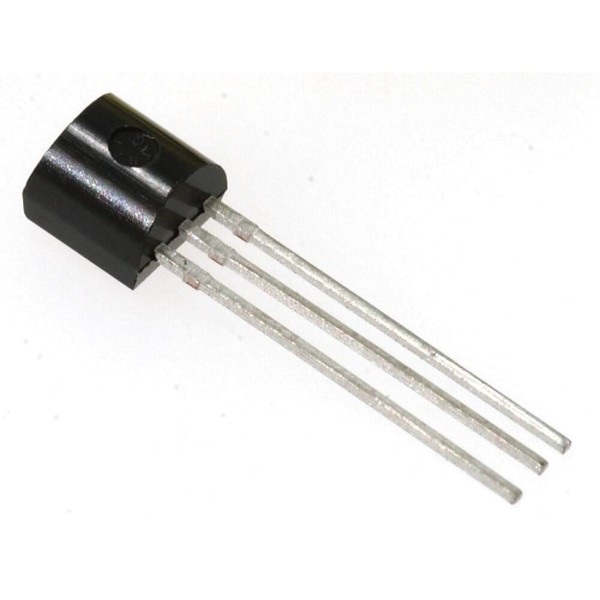

78L15 15V Linear Voltage Regulator IC (TO-92, 100mA)

The 78L15 is a low-current linear voltage regulator designed to provide a regulated 15V DC output from a higher DC input voltage. Its compact TO-92 package makes it suitable for space-constrained electronic circuits, low-power power supplies, and embedded systems. The regulator helps maintain a stable output voltage and typically includes internal thermal overload and short-circuit protection, depending on the manufacturer and device variant.

Key Features -

• Fixed 15V DC regulated output

• Low-current linear voltage regulator

• Maximum output current of 100mA, as specified

• Compact TO-92 package

• Designed for low-power electronic applications

• Internal thermal protection, depending on the device variant

• Short-circuit protection, depending on the device variant

• Simple integration into regulated power supply circuits

Specifications -

• Product Type: Linear Voltage Regulator IC

• Part Number: 78L15

• Output Voltage: 15V DC

• Input Voltage: 17V to 30V DC, as specified

• Maximum Output Current: 100mA, as specified

• Package Type: TO-92

• Mounting Type: Through Hole

• Operating Temperature: -40 C to +125 C, as specified

• Output Type: Fixed Positive Voltage

• Protection Features: Thermal overload and short-circuit protection, subject to manufacturer specifications

• Pin Configuration: Verify the manufacturer's datasheet for the exact package variant

Applications -

• Low-current regulated power supplies

• Embedded electronic circuits

• Sensor and signal conditioning circuits

• Industrial control electronics

• Analog circuit power supplies

• DIY electronics and prototyping

• Stable 15V supply rails for compatible electronic devices
