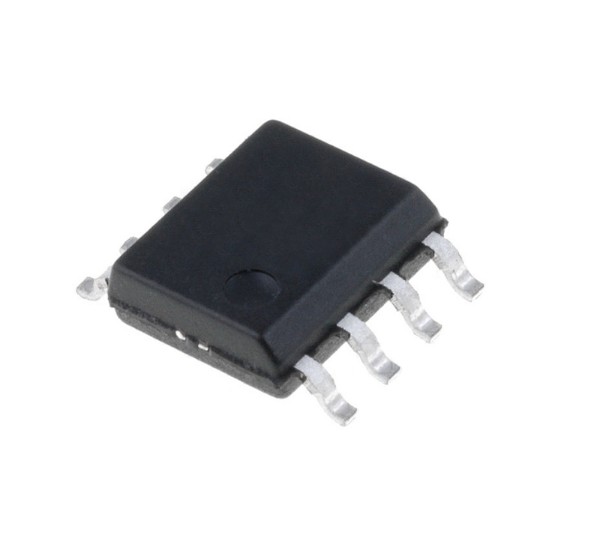

78L15 SMD IC SOIC-8 15V Voltage Regulator Positive Linear Regulator IC (78L15 SOIC-8 IC)

SKU: ICS-117Category: Electronic Components
₹ 17.70 (Inclusive of 18.00% GST)
Base Price: ₹ 15.00 | GST (18.00%): ₹ 2.70
In Stock
Secure payments powered by Razorpay
UPIMastercardRuPayGoogle Pay
Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email

78L15 SMD IC SOIC-8 15V Voltage Regulator Positive Linear Regulator IC (78L15 SOIC-8 IC)

The 78L15 in SOIC-8 package is a compact positive linear voltage regulator designed to provide a stable 15V output from a higher DC input voltage. It is suitable for low power applications where precise and reliable voltage regulation is required.

Key Features -

  • Fixed 15V output voltage regulator
  • SOIC-8 SMD compact package
  • Low quiescent current
  • Built-in thermal overload protection
  • Short circuit protection
  • Stable and low noise output

Specifications -

  • IC type - positive linear voltage regulator
  • Model - 78L15
  • Output voltage - 15V fixed
  • Output current - up to 100mA
  • Input voltage - up to approx 30V max
  • Dropout voltage - approx 1.7V typical
  • Package type - SOIC-8 SMD
  • Operating temperature - approx -40 to 125°C

Applications -

  • Industrial control circuits
  • Analog and signal processing circuits
  • Embedded electronics systems
  • Sensor and module power supply
  • Communication devices
  • DIY electronics projects

Pinout Configuration -

  • Pin 1 - input voltage
  • Pin 2 - ground
  • Pin 3 - output voltage
  • Remaining pins - internally connected or NC (variant dependent)
