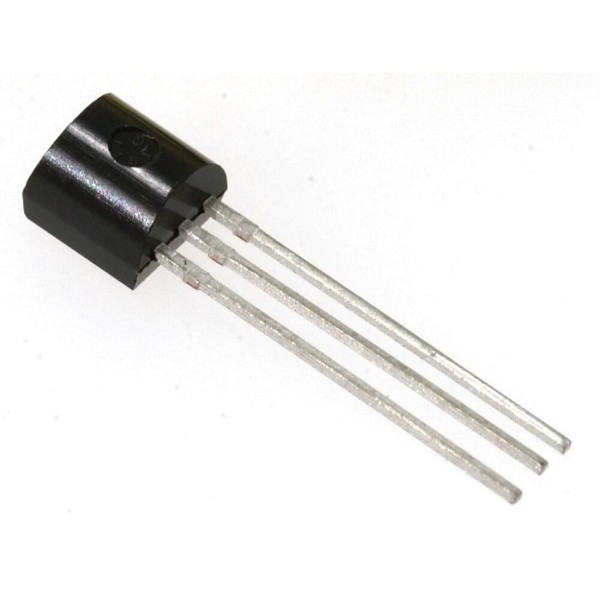

78L24 24V Voltage Regulator TO 92 IC (78L24 IC)

The 78L24 is a low current linear voltage regulator designed to provide a stable 24V output from a higher input voltage. It is available in a compact TO 92 package suitable for space constrained applications.

This IC is used in power supply circuits, industrial electronics, and control systems where regulated 24V output is required. It ensures stable operation with built in protection features.

Key Features

• Fixed 24V output voltage
• Low current linear regulator
• Compact TO 92 package
• Built in thermal protection
• Short circuit protection
• Suitable for low power applications

Specifications

• IC Type = Linear Voltage Regulator
• Output Voltage = 24V
• Input Voltage = 27V to 35V
• Output Current = 100mA
• Package Type = TO 92
• Operating Temperature = -40C to +125C

Interfaces

• VIN = Input voltage
• GND = Ground
• VOUT = Regulated output voltage
