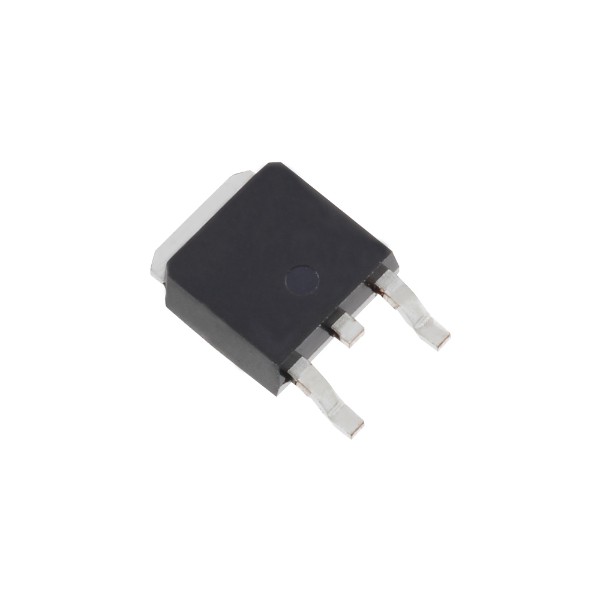

78M05 DPAK SMD IC 5V Voltage Regulator Positive Linear Regulator Medium Current IC (78M05 DPAK IC)

The 78M05 in DPAK (TO-252) package is a medium current positive linear voltage regulator designed to provide a stable 5V output from a higher DC input voltage. It is ideal for embedded systems, power supplies, and industrial electronics where moderate current and compact SMD design are required.

Key Features -

  • Fixed 5V regulated output
  • Medium current capability up to 500mA
  • DPAK (TO-252) SMD package for efficient heat dissipation
  • Built-in thermal shutdown protection
  • Short circuit and overload protection
  • Stable and low noise output

Specifications -

  • IC type - positive linear voltage regulator
  • Model - 78M05
  • Output voltage - 5V fixed
  • Output current - up to 500mA
  • Input voltage - up to approx 35V max
  • Dropout voltage - approx 2V typical
  • Package type - DPAK (TO-252) SMD
  • Operating temperature - approx -40 to 125°C

Applications -

  • Microcontroller and embedded systems
  • Power supply circuits
  • Industrial control electronics
  • Communication devices
  • Consumer electronics
  • DIY electronics and prototyping

Pinout Configuration -

  • Pin 1 - input voltage
  • Pin 2 - ground
  • Pin 3 - regulated 5V output
  • Tab - internally connected to ground (for heat dissipation)
