78M12 DPAK SMD IC 12V Voltage Regulator Positive Linear Regulator Medium Current IC (78M12 DPAK IC)

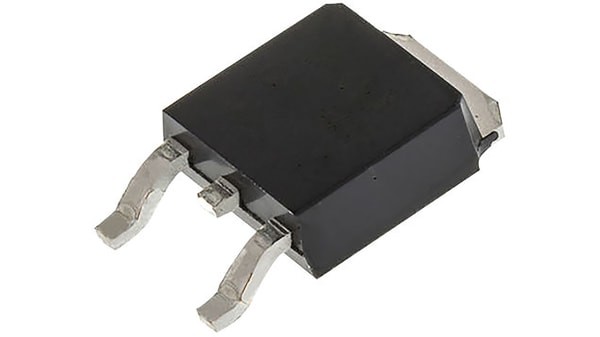

The 78M12 in DPAK (TO-252) package is a medium current positive linear voltage regulator designed to provide a stable 12V output from a higher input voltage. It is ideal for applications requiring more current than 78L series while maintaining compact SMD design.

Key Features -

  • Fixed 12V regulated output
  • Medium current capability up to 500mA
  • DPAK (TO-252) SMD package for good heat dissipation
  • Built-in thermal shutdown protection
  • Short circuit and overload protection
  • Stable and low noise output

Specifications -

  • IC type - positive linear voltage regulator
  • Model - 78M12
  • Output voltage - 12V fixed
  • Output current - up to 500mA
  • Input voltage - up to approx 35V max
  • Dropout voltage - approx 2V typical
  • Package type - DPAK (TO-252) SMD
  • Operating temperature - approx -40 to 125°C

Applications -

  • Power supply circuits
  • Microcontroller and embedded systems
  • Industrial control equipment
  • Communication devices
  • Consumer electronics
  • DIY electronics and prototyping

Pinout Configuration -

  • Pin 1 - input voltage
  • Pin 2 - ground
  • Pin 3 - regulated 12V output
  • Tab - internally connected to ground (for heat dissipation)
