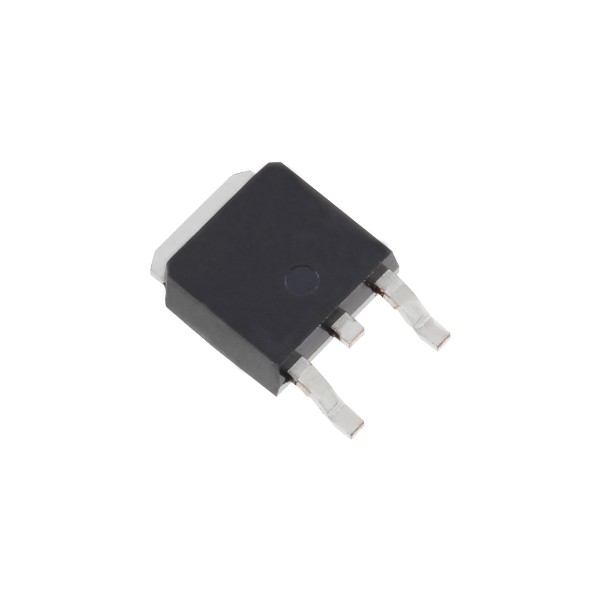

78M15 DPAK SMD IC 15V Voltage Regulator Positive Linear Regulator Medium Current IC (78M15 DPAK IC)

The 78M15 in DPAK (TO-252) package is a medium current positive linear voltage regulator designed to deliver a stable 15V output from a higher input voltage. It is ideal for applications requiring higher current than 78L series with good thermal performance in SMD form.

Key Features -

• Fixed 15V regulated output
• Medium current capability up to 500mA
• DPAK (TO-252) SMD package for efficient heat dissipation
• Built-in thermal shutdown protection
• Short circuit and overload protection
• Stable and low noise output

Specifications -

• IC type - positive linear voltage regulator
• Model - 78M15
• Output voltage - 15V fixed
• Output current - up to 500mA
• Input voltage - up to approx 35V max
• Dropout voltage - approx 2V typical
• Package type - DPAK (TO-252) SMD
• Operating temperature - approx -40 to 125°C

Applications -

• Power supply circuits
• Industrial electronics
• Communication systems
• Analog circuits and instrumentation
• Embedded systems
• DIY electronics and prototyping

Pinout Configuration -

• Pin 1 - input voltage
• Pin 2 - ground
• Pin 3 - regulated 15V output
• Tab - internally connected to ground (heat dissipation)
