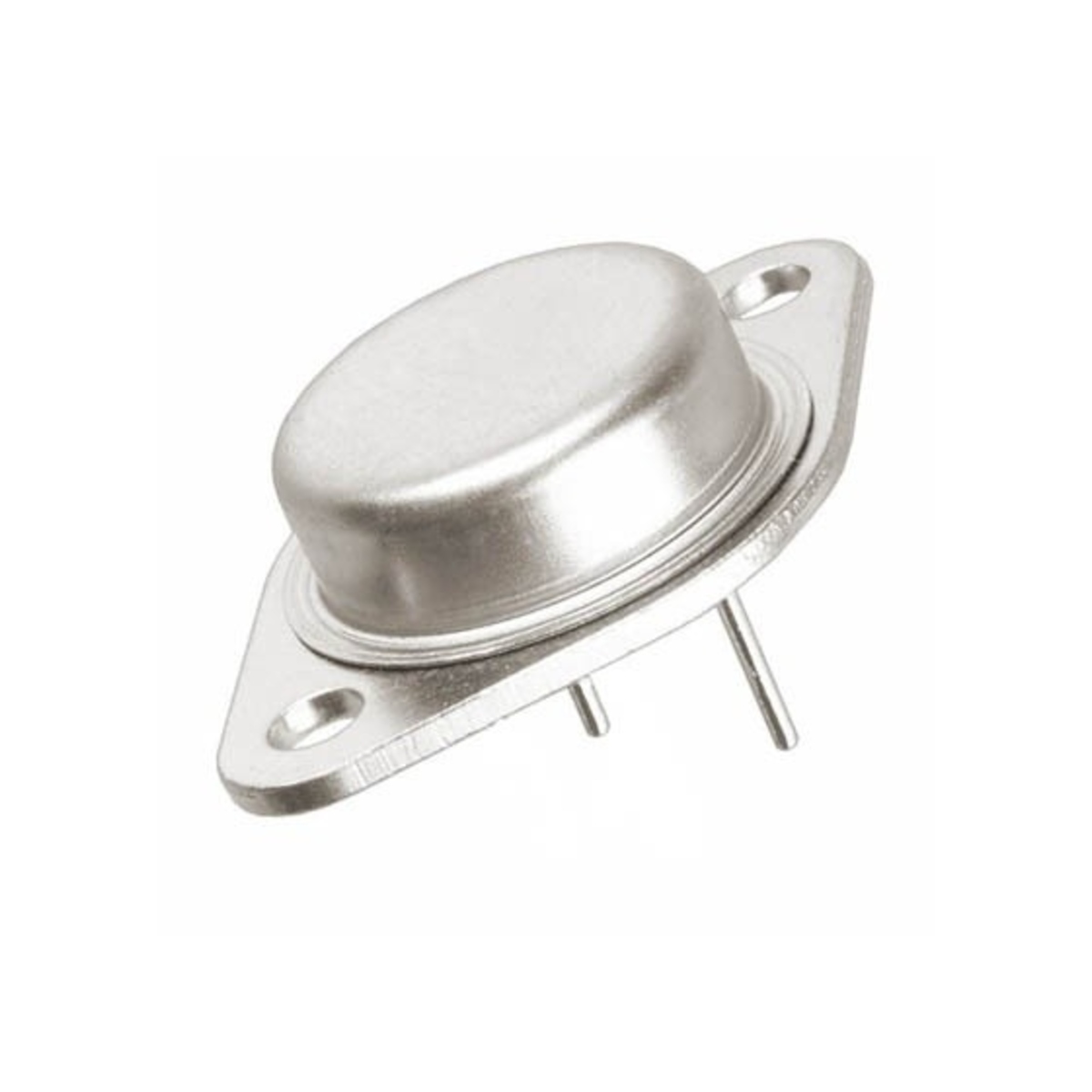

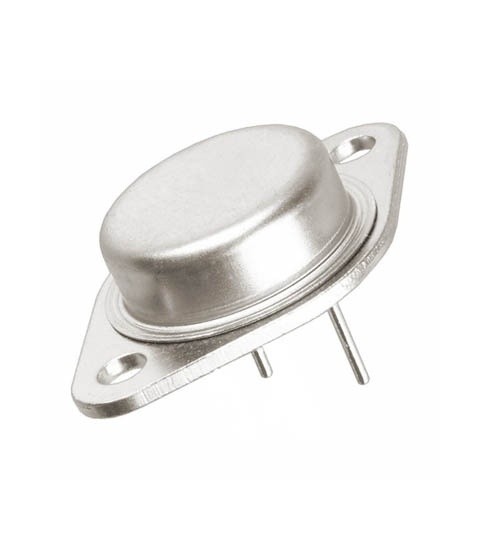

7915 Negative 15V Voltage Regulator TO-3 IC (Negative Voltage Regulator, Fixed Voltage Regulator)

The 7915 is a three-terminal negative voltage regulator designed to provide a stable -15V output for power supplies, industrial equipment, instrumentation, audio systems, and electronic circuits. Housed in a robust TO-3 metal package, this regulator offers excellent voltage regulation, built-in protection features, and reliable long-term performance in demanding applications.

Key Features -

• Fixed -15V output voltage

• Negative voltage regulator

• High reliability operation

• Excellent line and load regulation

• Built-in thermal protection

• Internal current limiting

• TO-3 metal package

Specifications -

• Product type - Negative voltage regulator IC

• Model - 7915

• Output voltage - -15V DC

• Regulator type - Fixed Negative Voltage Regulator

• Package type - TO-3

• Mounting type - Chassis Mount

• Output current - Up to 1A with proper heatsinking

• Input voltage - Suitable for negative DC supplies

• Protection features - Thermal shutdown and current limiting

• Additional features - Stable output voltage and robust construction

Applications -

• Dual power supply circuits

• Audio amplifiers

• Industrial control systems

• Instrumentation equipment

• Analog circuits

• Laboratory power supplies

• Communication equipment
