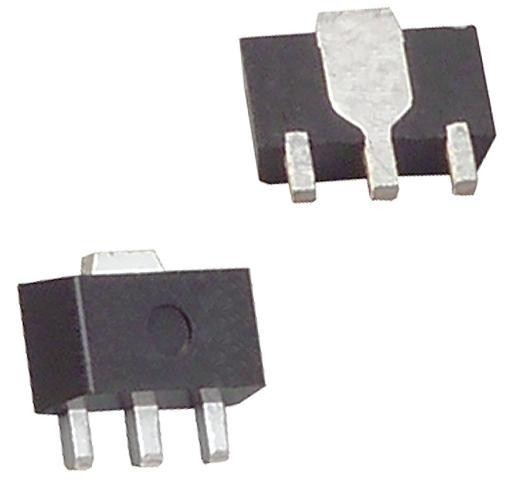

79L05 SMD IC SOT-89 -5V Negative Voltage Regulator Low Current Linear Regulator IC (79L05 SOT-89 IC)

The 79L05 in SOT-89 package is a compact negative linear voltage regulator designed to provide a stable -5V output from a negative input supply. It is ideal for low power analog and dual-supply circuits requiring reliable negative voltage regulation.

Key Features -

  • Fixed -5V output voltage regulator
  • Compact SOT-89 SMD package
  • Low quiescent current
  • Built-in thermal overload protection
  • Short circuit protection
  • Stable and low noise output

Specifications -

  • IC type - negative linear voltage regulator
  • Model - 79L05
  • Output voltage - -5V fixed
  • Output current - up to 100mA
  • Input voltage - up to approx -30V max
  • Dropout voltage - approx 1.7V typical
  • Package type - SOT-89 SMD
  • Operating temperature - approx -40 to 125°C

Applications -

  • Dual power supply systems (+/- rails)
  • Operational amplifier circuits
  • Audio and analog circuits
  • Instrumentation systems
  • Communication equipment
  • Embedded electronics

Pinout Configuration -

  • Pin 1 - ground
  • Pin 2 - input (negative voltage)
  • Pin 3 - regulated -5V output
