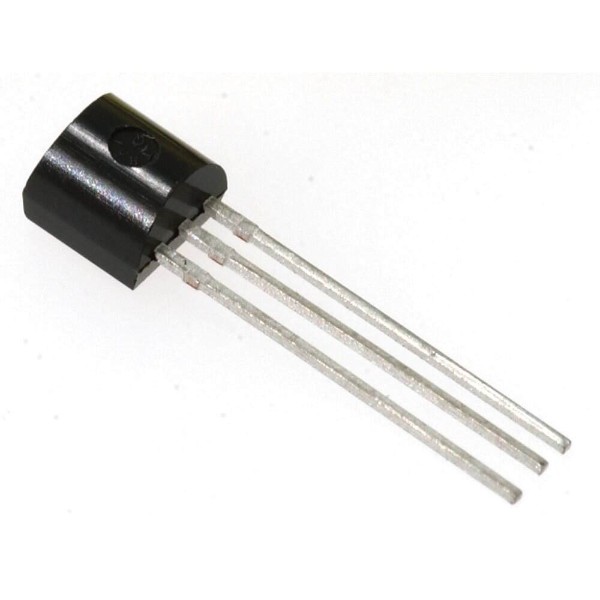

79L09 Negative Voltage Regulator IC (TO-92, -9V, 100mA)

The 79L09 is a low-current negative linear voltage regulator designed to provide a regulated -9V DC output from a suitable negative input voltage. Its compact TO-92 through-hole package makes it suitable for space-constrained electronic circuits, dual power supplies, analog systems, and signal processing applications. The regulator helps maintain a stable negative voltage rail for compatible circuits and typically includes internal thermal and overload protection, depending on the manufacturer and device variant.

Key Features -

• Fixed -9V regulated output

• Low-current negative linear voltage regulator

• Maximum output current of 100mA, as specified

• Compact TO-92 package

• Suitable for low-power electronic applications

• Thermal overload protection, depending on the device variant

• Short-circuit protection, depending on the device variant

• Suitable for negative voltage supply rails

Specifications -

• Product Type: Negative Linear Voltage Regulator IC

• Part Number: 79L09

• Output Voltage: -9V DC

• Input Voltage: -11V to -30V DC, as specified; verify the permitted range in the manufacturer's datasheet

• Maximum Output Current: 100mA, as specified

• Package Type: TO-92

• Mounting Type: Through Hole

• Operating Temperature: -40 C to +125 C, as specified

• Output Type: Fixed Negative Voltage

• Protection Features: Thermal overload and short-circuit protection, subject to manufacturer specifications

• Pin Configuration: Verify the manufacturer's datasheet for the exact package variant

Applications -

• Dual power supply circuits

• Analog signal processing systems

• Operational amplifier supply rails

• Sensor signal conditioning circuits

• Negative voltage bias circuits

• Low-power embedded electronics

• Electronic prototyping and repair projects
