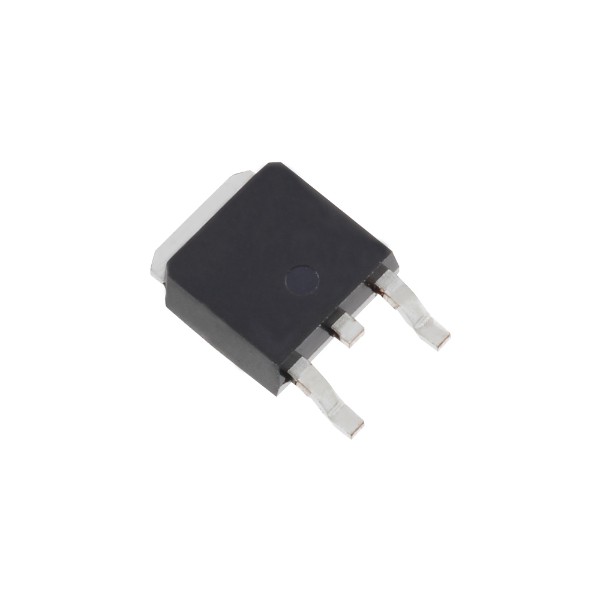

79M05 DPAK SMD IC -5V Voltage Regulator Negative Linear Regulator Medium Current IC (79M05 DPAK IC)

SKU: ICS-122Category: Electronic Components
₹ 21.20 (Inclusive of 18.00% GST)
Base Price: ₹ 18.00 | GST (18.00%): ₹ 3.20
In Stock
Secure payments powered by Razorpay
UPIMastercardRuPayGoogle Pay
Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email

79M05 DPAK SMD IC -5V Voltage Regulator Negative Linear Regulator Medium Current IC (79M05 DPAK IC)

The 79M05 in DPAK (TO-252) package is a medium current negative linear voltage regulator designed to provide a stable -5V output from a negative input voltage source. It is commonly used in dual supply systems, analog circuits, and industrial electronics requiring regulated negative voltage rails.

Key Features -

  • Fixed -5V regulated output
  • Medium current capability up to 500mA
  • DPAK (TO-252) SMD package for efficient heat dissipation
  • Built-in thermal shutdown protection
  • Short circuit and overload protection
  • Stable and low noise output

Specifications -

  • IC type - negative linear voltage regulator
  • Model - 79M05
  • Output voltage - -5V fixed
  • Output current - up to 500mA
  • Input voltage - up to approx -35V max
  • Dropout voltage - approx 2V typical
  • Package type - DPAK (TO-252) SMD
  • Operating temperature - approx -40 to 125°C

Applications -

  • Dual power supply systems
  • Operational amplifier circuits
  • Audio and analog electronics
  • Industrial instrumentation
  • Communication equipment
  • Embedded electronics

Pinout Configuration -

  • Pin 1 - ground
  • Pin 2 - input (negative voltage)
  • Pin 3 - regulated -5V output
  • Tab - internally connected to ground (for heat dissipation)
