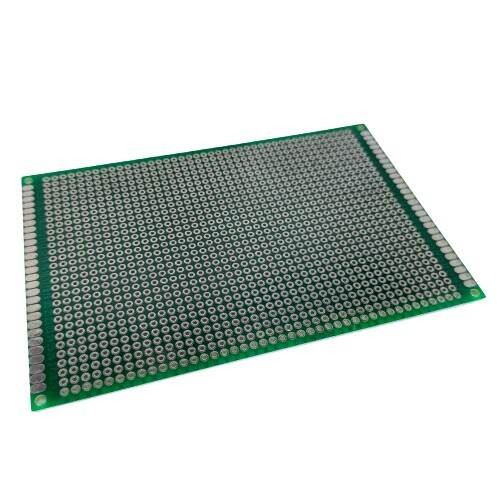

80 x 120mm Double-Sided 2.54mm Pitch General Purpose Dotted PCB (Prototype Perf Board)

The 80 x 120mm Double-Sided 2.54mm Pitch General Purpose Dotted PCB is a versatile prototype perf board designed for assembling, testing, and developing electronic circuits using standard through-hole components. Featuring 2.54mm (0.1 inch) hole spacing and copper pads on both sides, it provides enhanced routing flexibility and reliable electrical connections, making it ideal for prototyping, educational projects, repairs, and DIY electronics. The double-sided copper construction enables more efficient circuit layouts while maintaining compatibility with standard electronic components.

Manufactured from high-quality PCB material, this board is suitable for engineers, students, technicians, and electronics enthusiasts working on custom electronic circuit development.

Key Features -

• Standard 80 x 120mm prototype PCB

• Double-sided copper construction

• Standard 2.54mm pitch hole spacing

• General-purpose dotted copper pad layout

• Compatible with standard through-hole electronic components

• Improved routing flexibility with copper pads on both sides

• Easy to solder, modify, and repair

• Ideal for prototyping, testing, and educational projects

Specifications -

• Product Type: General Purpose Dotted PCB

• PCB Size: 80 x 120mm

• PCB Type: Double-Sided

• Pitch: 2.54mm

• Pad Style: Dotted Copper Pads

• Mounting Type: Through-Hole Components

• Copper Layer: Double-Sided

• Board Thickness: 1.6mm (Typical)

• Surface Finish: HASL (Typical)

• Application: Electronic Circuit Prototyping

Applications -

• Electronic circuit prototyping

• Breadboard circuit transfer

• Embedded system development

• Educational and laboratory experiments

• Sensor and interface circuit development

• Electronic repair and modification

• DIY electronics projects

• Research and development
