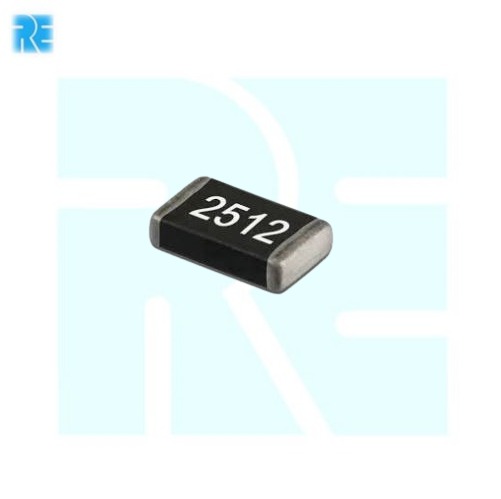

820 Ohm 2512 5% SMD Resistor / Chip Resistor (High Power Surface Mount Thick Film Resistor)

The 820 Ohm 2512 5% SMD Resistor is a high-power surface mount thick film chip resistor designed for reliable current limiting, voltage division, and signal conditioning in electronic circuits. Its 2512 (6432 Metric) package provides higher power handling, making it suitable for power supplies, industrial electronics, automotive systems, and general PCB applications.

Key Features -

• Resistance value of 820 Ohm

• ±5% tolerance for reliable performance

• High-power 2512 (6432 Metric) SMD package

• Excellent electrical stability and reliability

• Suitable for automated SMT assembly

• RoHS compliant and lead-free construction

Specifications -

• Product type - SMD Chip Resistor

• Resistance - 820 Ohm

• Tolerance - ±5%

• Package size - 2512 (6432 Metric)

• Mounting type - Surface Mount (SMD/SMT)

• Power rating - 1W (Typical for 2512 package)

• Temperature coefficient - ±200ppm/°C (Typical)

• Construction - Thick Film Chip Resistor

• Operating temperature - -55°C to +155°C

• Additional features - High power handling, low noise, compact design, high reliability

Applications -

• Current limiting circuits

• Voltage divider networks

• Power supply circuits

• Industrial control systems

• Automotive electronics

• Consumer electronic devices

• LED driver circuits

• Embedded systems and PCB assemblies
