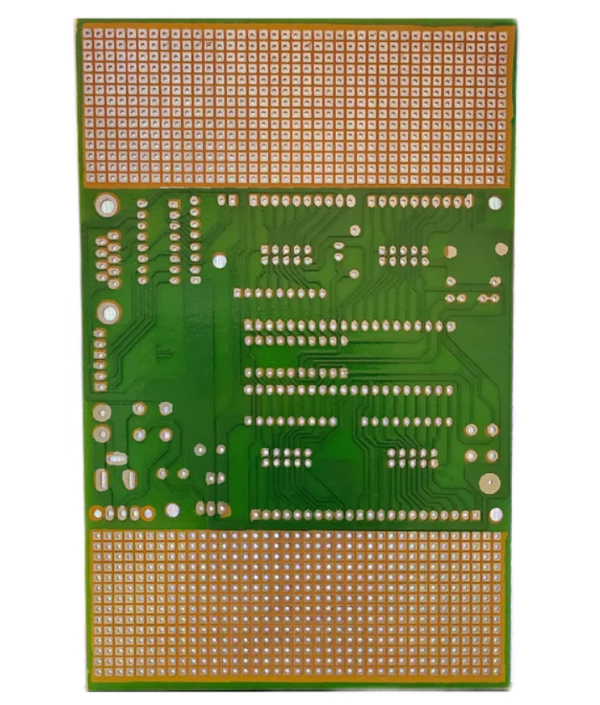

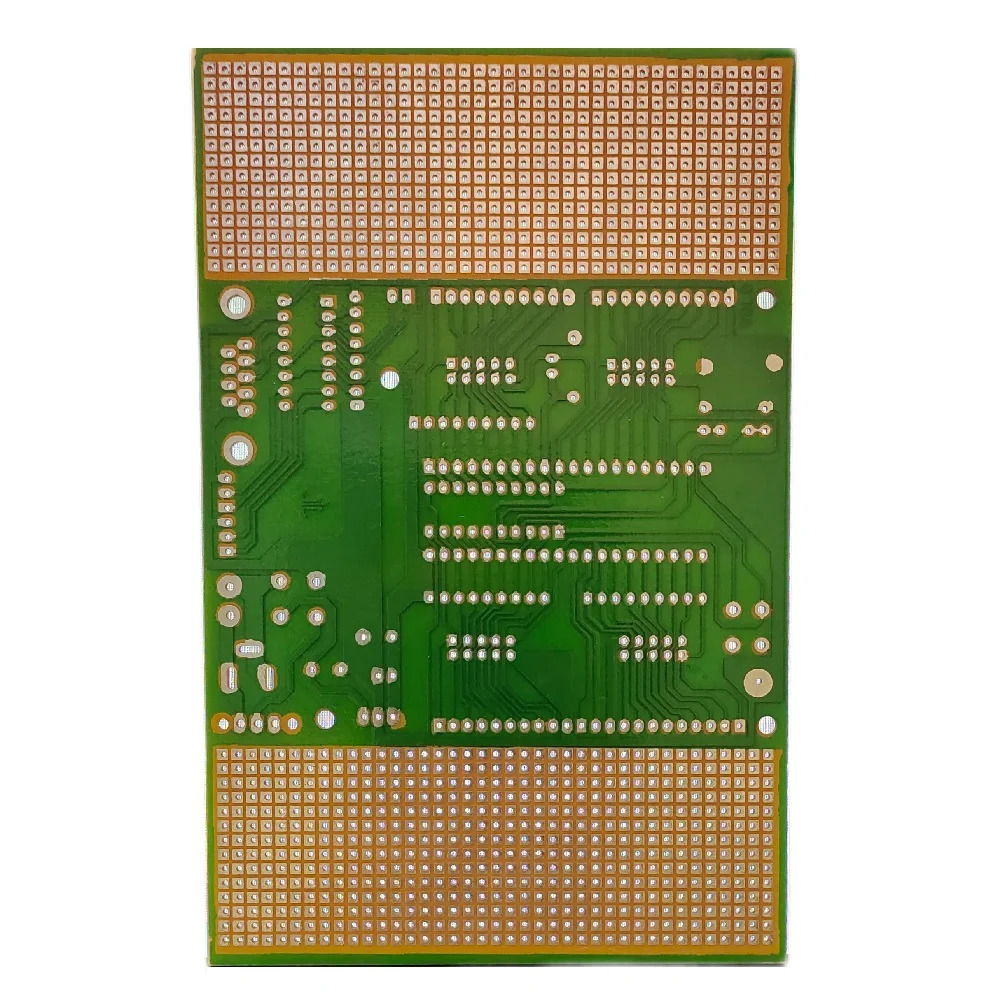

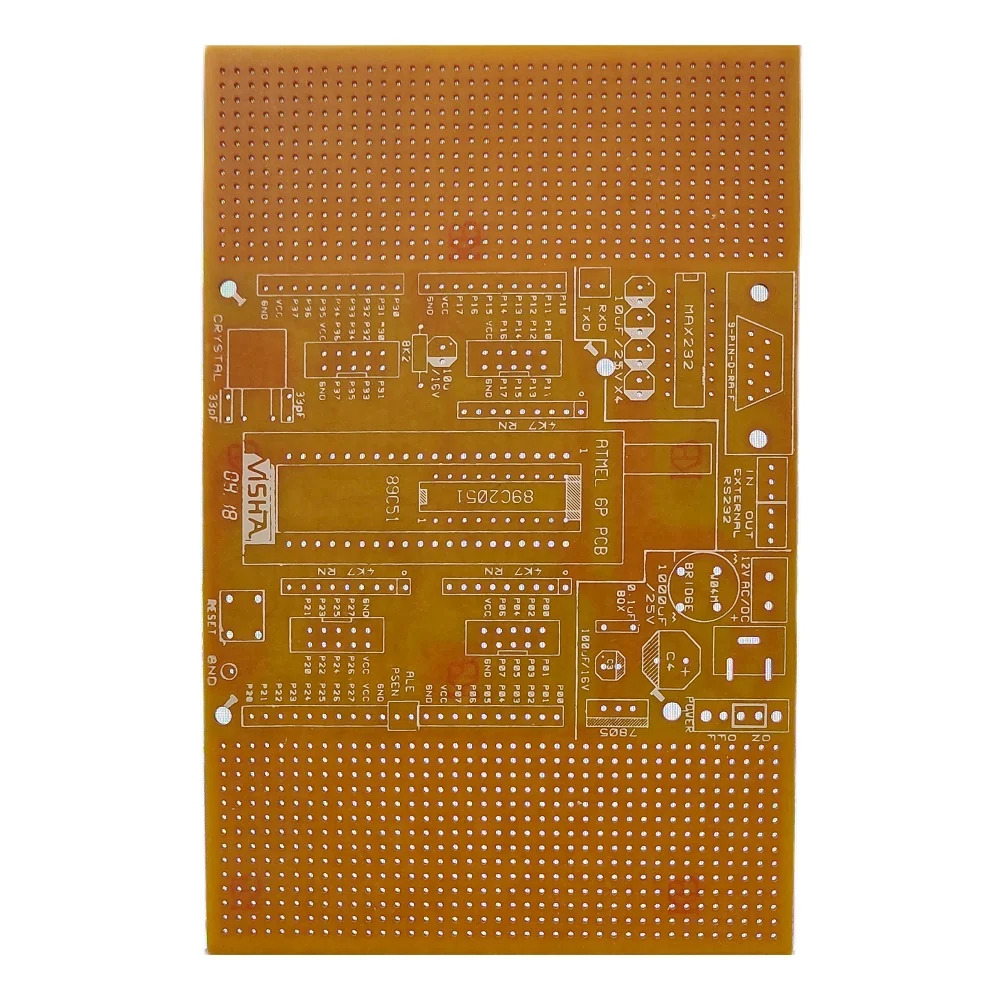

89Cxx Test Single-Sided Phenolic PCB 161 x 104mm (AT89Cxx Development & Testing Board)

The 89Cxx Test Single-Sided Phenolic PCB 161 x 104mm is a dedicated development and testing PCB designed for AT89Cxx series 8051 microcontrollers. It provides a convenient platform for building, programming, and evaluating embedded applications based on the 8051 architecture. The board includes provisions for essential supporting components such as crystal oscillator, reset circuitry, power supply, I/O headers, and peripheral interfacing, making it ideal for educational, laboratory, and prototype development.

Manufactured using durable single-sided phenolic PCB material, it offers a cost-effective solution for students, hobbyists, trainers, and embedded system developers working with 89Cxx microcontrollers.

Key Features -

• Dedicated test PCB for AT89Cxx series microcontrollers

• Standard 161 x 104mm board size

• Single-sided phenolic PCB construction

• Suitable for 8051 development and testing projects

• Provision for crystal oscillator and reset circuit

• Supports external peripheral interfacing

• Easy component mounting and soldering

• Ideal for educational, laboratory, and embedded development applications

Specifications -

• Product Type: 89Cxx Test PCB

• Compatible Microcontrollers: AT89C51, AT89C52, AT89S51, AT89S52 and other compatible 89Cxx devices

• PCB Size: 161 x 104mm

• PCB Type: Single-Sided

• PCB Material: Phenolic

• Mounting Type: Through-Hole Components

• Application: 8051 Microcontroller Development and Testing

• Board Color: May vary depending on manufacturing batch

Applications -

• 8051 microcontroller learning and training

• Embedded systems development

• Educational laboratory experiments

• Firmware testing and debugging

• Prototype circuit development

• Industrial controller evaluation

• College and engineering projects

• Microcontroller interface experimentation
