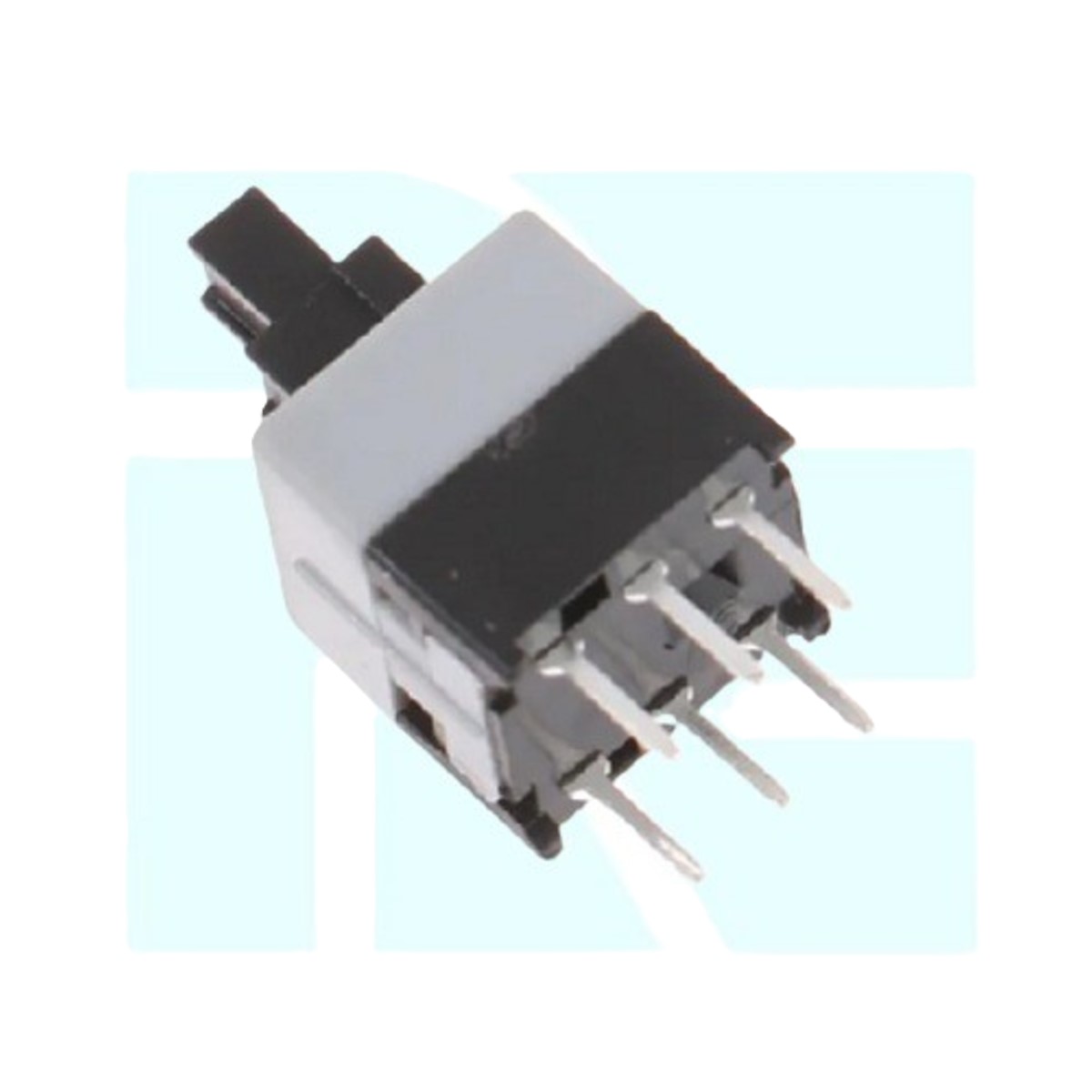

8x8mm 6 Pin DPDT Push Switch Push To OFF Gray Black Through Hole

The 8x8mm 6 Pin DPDT Push To OFF Switch is a compact double pole double throw momentary push switch designed for switching and control applications in electronic circuits. It features a push-to-off mechanism and a durable gray and black actuator, making it suitable for control panels, consumer electronics, instrumentation, and DIY projects.

Key Features -

• Compact 8x8mm switch size

• DPDT contact configuration

• 6 pin through hole design

• Push to OFF momentary operation

• Gray and black actuator

• Reliable mechanical switching action

• Easy PCB mounting

• Suitable for low power control circuits

Specifications -

• Product type - Push Button Switch

• Switch configuration - DPDT

• Number of pins - 6 Pin

• Switch action - Push To OFF

• Mounting type - Through Hole

• Actuator color - Gray Black

• Body size - 8x8mm

• Contact type - Momentary Switch Contact

• Application - Signal and Circuit Switching

Interfaces -

• Pin 1 - Pole 1 Connection

• Pin 2 - Pole 1 Switching Contact

• Pin 3 - Pole 1 Switching Contact

• Pin 4 - Pole 2 Connection

• Pin 5 - Pole 2 Switching Contact

• Pin 6 - Pole 2 Switching Contact

Applications -

• Electronic control panels

• Consumer electronics

• Test and measurement equipment

• DIY electronic projects

• Signal routing circuits

• Industrial control systems

• Embedded system controls
