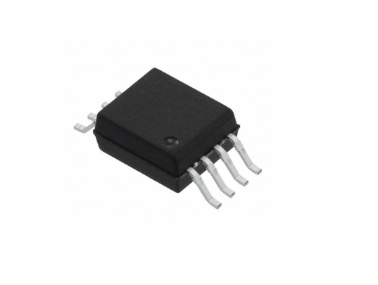

ACPL C870 Isolation Amplifier IC (SSO 8, Galvanic Isolation)

The ACPL C870 000E from Broadcom is an isolation amplifier designed to measure analog signals across electrically isolated circuits. It provides isolation between the input and output sides, helping protect low voltage control electronics from high voltage circuits and electrical noise. It is suitable for voltage and current sensing in power conversion, motor control, and industrial monitoring applications.

Key Features -

• Isolation amplifier for analog signal measurement

• Galvanic isolation between input and output circuits

• Designed for isolated voltage and current sensing

• Supports signal measurement in power electronics

• Compact SSO 8 surface mount package

• Suitable for industrial monitoring and control circuits

Specifications -

• Part Number: ACPL C870 000E

• Manufacturer: Broadcom

• IC Type: Isolation Amplifier

• Package: SSO 8

• Function: Isolated analog signal measurement

• Input Type: Analog voltage signal

• Output Type: Analog signal

• Isolation Rating and input range: Refer to the exact manufacturer datasheet

• Supply Voltage: Verify the manufacturer's specifications

• Accuracy and bandwidth: Depend on the specified operating conditions

Applications -

• Inverter and converter voltage sensing

• Motor drive monitoring

• Switched mode power supplies

• Industrial power control systems

• Current and voltage measurement circuits

• Renewable energy power electronics

• Electrical monitoring and protection systems
