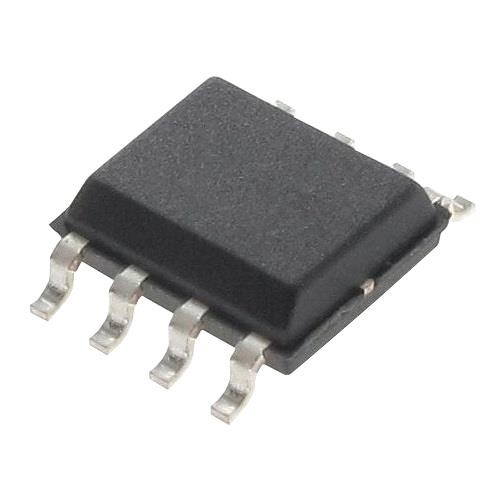

ACS712ELCTR-20A-T 20A SOIC-8 Current Sensor IC (Hall Effect Current Sensor)

The ACS712ELCTR-20A-T is a Hall effect based current sensor IC designed for accurate AC and DC current measurement in electronic and industrial applications. It provides electrically isolated analog voltage output proportional to the measured current.

Key Features -

• 20A current sensing capability

• Hall effect based current measurement

• Supports AC and DC current detection

• Electrically isolated sensing output

• SOIC-8 compact SMD package

• Low noise analog voltage output

Specifications -

• Product type - Current sensor IC

• Model - ACS712ELCTR-20A-T

• Package type - SOIC-8

• Mounting type - Surface Mount Device

• Voltage rating - 5V DC operation

• Current rating - ±20A sensing range

• Frequency - Suitable for AC and DC current monitoring

• Material - Silicon semiconductor

• Additional features - Integrated Hall effect isolation sensing

Applications -

• Motor current monitoring

• Power supply protection circuits

• Battery management systems

• Industrial automation equipment

• Embedded electronic measurement systemsACS712ELCTR-20A-T 20A SOIC-8 Current Sensor IC (Hall Effect Current Sensor)
