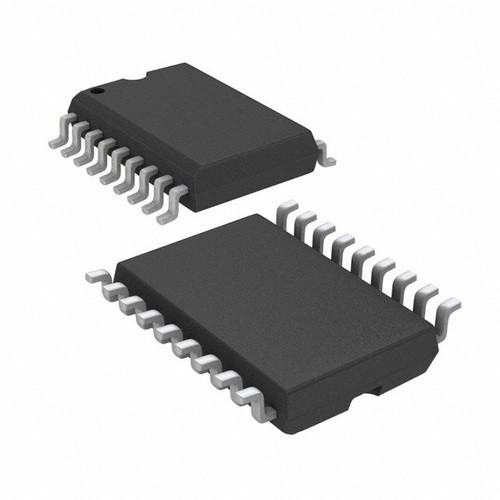

AD7541AK Digital to Analog Converter IC (12 Bit, Parallel Interface)

The AD7541AK is a 12 bit multiplying digital to analog converter (DAC) designed to convert digital input data into a proportional analog output using an external operational amplifier. It uses a precision R 2R ladder architecture and supports applications requiring accurate analog signal generation, programmable gain, and waveform control. Verify the exact package suffix and pin arrangement against the manufacturer datasheet before PCB design.

Key Features -

• 12 bit digital to analog conversion

• Multiplying DAC architecture

• Precision R 2R resistor ladder

• Parallel digital input interface

• Supports four quadrant multiplication when used with suitable external circuitry

• Designed for use with an external operational amplifier

• Suitable for precision analog control and signal generation

Specifications -

• Part Number: AD7541AK

• IC Type: Multiplying Digital to Analog Converter

• Resolution: 12 bit

• Package: SOIC 18, as specified

• Conversion Architecture: R 2R ladder

• Digital Interface: Parallel input

• Analog Output: Current output requiring external conversion circuitry

• Reference Input: External reference voltage

• Output performance and electrical ratings: Refer to the exact manufacturer datasheet

Applications -

• Programmable gain circuits

• Precision instrumentation

• Analog signal generation

• Waveform generation systems

• Industrial process control

• Automatic test equipment

• Analog multiplication and modulation circuits
