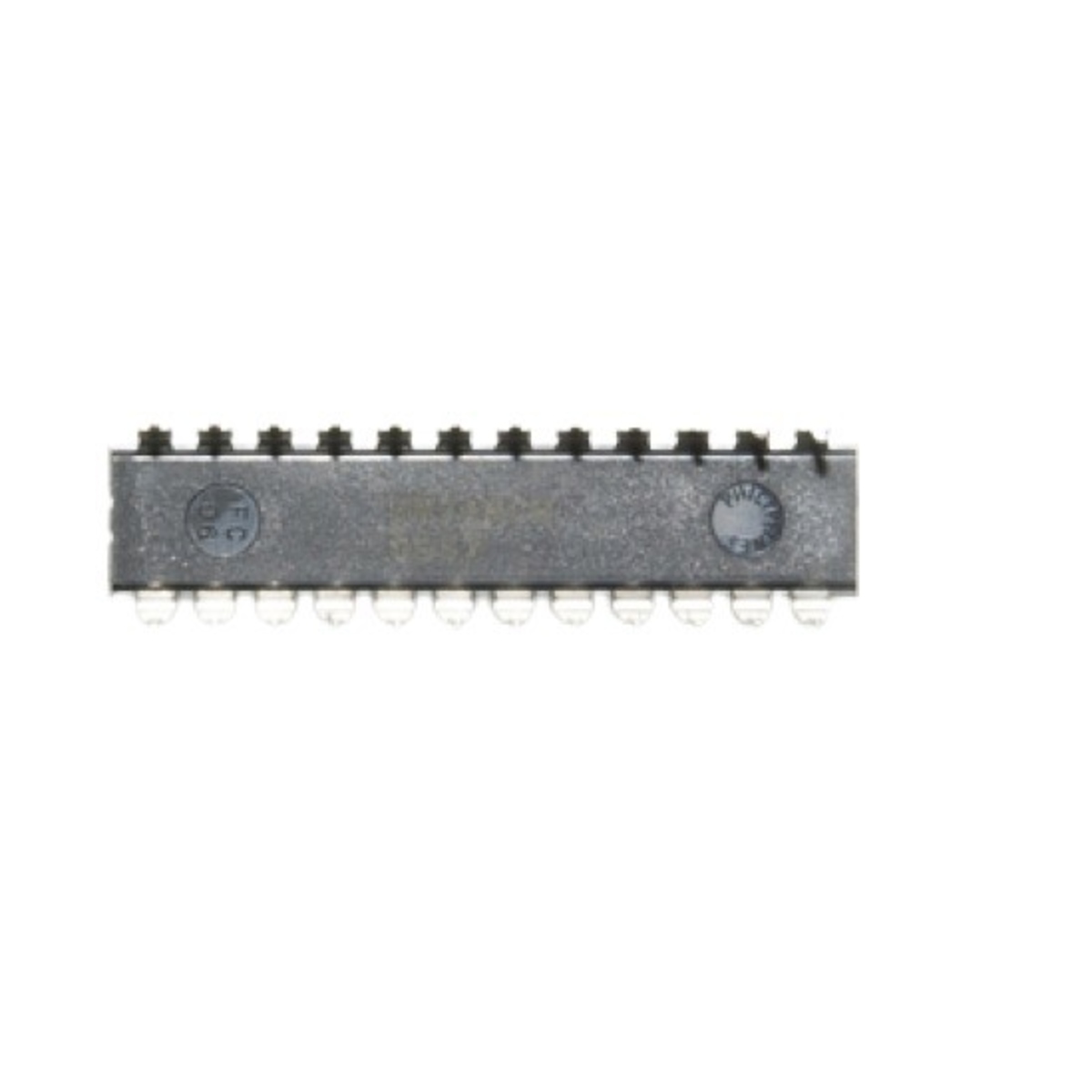

AD7547JN 12-Bit Multiplying Digital to Analog Converter IC DIP-20 (AD7547JN DAC IC)

The AD7547JN is a high-performance 12-bit Multiplying Digital-to-Analog Converter (MDAC) designed for precision signal processing, programmable gain control, waveform generation, and industrial instrumentation applications. Housed in a DIP-20 package, this DAC provides accurate digital-to-analog conversion with excellent linearity and fast settling time, making it suitable for embedded control and data acquisition systems.

Key Features -

• 12-bit resolution DAC

• Multiplying Digital-to-Analog Converter architecture

• High accuracy and linearity

• Fast settling time

• Wide reference voltage range

• Low power consumption

• DIP-20 through hole package

Specifications -

• Product type - Digital-to-Analog Converter IC

• Model - AD7547JN

• Converter type - Multiplying DAC

• Resolution - 12-Bit

• Package type - DIP-20

• Mounting type - Through Hole Mount

• Input type - Parallel digital input

• Output type - Analog current output

• Reference input - External reference voltage

• Additional features - High precision, low error, and stable performance

Applications -

• Data acquisition systems

• Programmable power supplies

• Signal generation equipment

• Industrial instrumentation

• Process control systems

• Embedded electronic designs

• Test and measurement equipment
