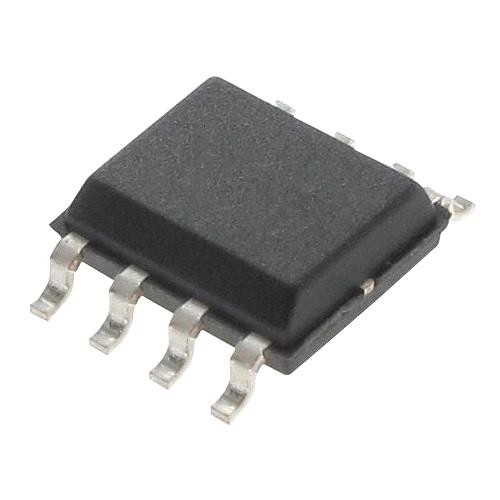

AD8226BRZ Instrumentation Amplifier IC (SOIC 8, Precision, Low Power)

The AD8226BRZ is a precision instrumentation amplifier from Analog Devices designed to amplify small differential signals while rejecting common mode noise. It offers a high input impedance, low power consumption, and gain adjustment using an external resistor. Its compact SOIC 8 package makes it suitable for sensor interfaces, industrial measurement equipment, and data acquisition systems.

Key Features -

• Precision instrumentation amplifier

• High input impedance for sensor signal interfacing

• High common mode rejection

• Gain adjustable using an external resistor

• Low power consumption

• Suitable for single supply and dual supply operation

• Compact SOIC 8 surface mount package

Specifications -

• Part Number: AD8226BRZ

• Manufacturer: Analog Devices

• IC Type: Instrumentation Amplifier

• Package: SOIC 8

• Number of Amplifier Channels: 1

• Gain Range: 1 to 1000, set using an external resistor

• Supply Voltage: 2.2V to 36V single supply or plus and minus 1.1V to plus and minus 18V dual supply

• Input Type: Differential

• Output Type: Single ended

• Gain Setting: External resistor connected between the gain pins

• Input and output electrical limits: Refer to the manufacturer datasheet

Applications -

• Strain gauge signal conditioning

• Pressure and force sensor interfaces

• Industrial process control

• Medical instrumentation development

• Data acquisition systems

• Bridge sensor measurement circuits

• Low level differential signal amplification
