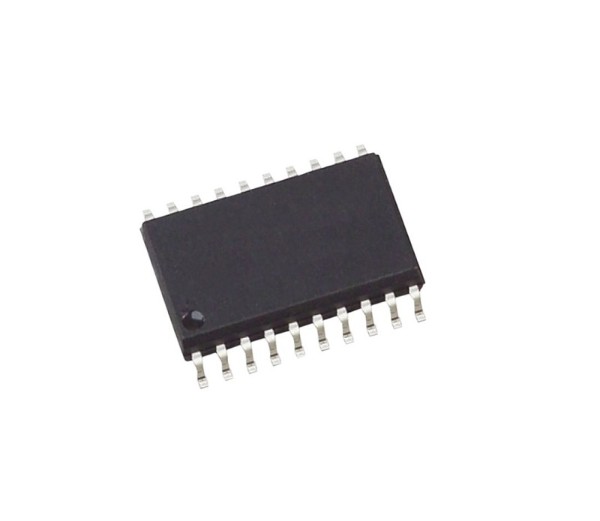

ADC0804 SOIC-20 8-Bit Analog to Digital Converter IC (ADC0804)

SKU: ICS-172Category: Electronic Components
₹ 218.30 (Inclusive of 18.00% GST)
Base Price: ₹ 185.00 | GST (18.00%): ₹ 33.30
In Stock
Secure payments powered by Razorpay
UPIMastercardRuPayGoogle Pay
Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email

ADC0804 SOIC-20 8-Bit Analog to Digital Converter IC (ADC0804)

The ADC0804 is an 8-bit Analog to Digital Converter IC designed for converting analog voltage signals into digital output data. It is widely used in embedded systems, instrumentation, sensor interfacing, and data acquisition applications due to its simple interfacing, reliable conversion performance, and low power operation.

Key Features -

  • 8-bit analog to digital converter IC
  • Single channel ADC with parallel digital output
  • CMOS compatible digital interface
  • SOIC-20 surface mount package
  • Suitable for microcontroller and sensor interfacing applications

Specifications -

  • IC type / Product type - Analog to Digital Converter IC
  • Logic family / Component type - Data Converter IC
  • Package type - SOIC-20 SMD IC
  • Supply voltage - Approx 5V DC
  • Input voltage - Analog input signal range approx 0V to 5V
  • Output voltage - 8-bit digital parallel output
  • Current rating - Low power operation
  • Frequency / propagation delay - Conversion time approx 100us typical depending on clock frequency
  • Operating temperature - Approx 0 to +70 degree C
  • Additional important specifications - 8-bit resolution, single analog input channel, internal clock support, TTL and CMOS compatible outputs, differential reference voltage support

Applications -

  • Sensor interfacing systems
  • Embedded electronics projects
  • Data acquisition systems
  • Industrial monitoring circuits
  • Microcontroller based measurement systems

Pinout Configuration -

  • Pin 1 - Chip select input
  • Pin 2 - Read control input
  • Pin 3 - Write control input
  • Additional pins - Analog input pin, interrupt output pin, clock pins, digital data output pins, reference voltage pins, VCC supply pin, GND pin
