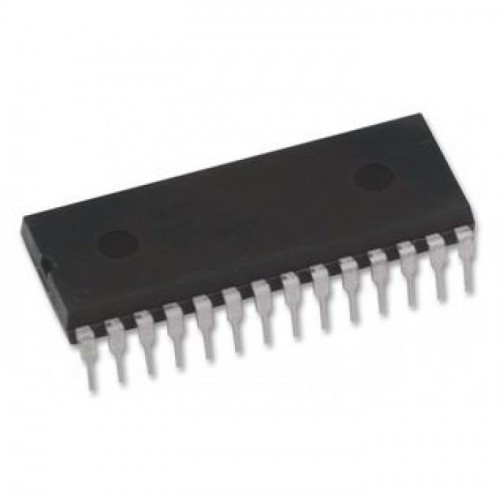

ADC0809 8-Channel 8-Bit Analog-to-Digital Converter DIP-28 (ADC0809 DIP IC)




Collect upto 7:30 PM (Mon – Sat)
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
ADC0809 8-Channel 8-Bit Analog-to-Digital Converter DIP-28 (ADC0809 DIP IC) The ADC0809 is a high-performance CMOS integrated circuit that combines an 8-bit analog-to-digital converter (ADC) with an 8-channel multiplexer and microprocessor-compatible control logic. It utilizes a successive approximation register (SAR) technique for high-speed conversion. The integrated 8-channel multiplexer allows the IC to directly access any of the 8 single-ended analog signals. The ADC0809 is functionally similar to the ADC0808 but with a slightly different total unadjusted error specification.
This IC is primarily used in multi-channel data acquisition systems, process control, and automotive instrumentation. It is an essential component for Arduino electronics projects in India that require monitoring multiple analog sensors (such as temperature, light, and pressure) simultaneously through a single 8-bit parallel data bus.
Key Features
- Integrated 8-channel multiplexer with address logic
- 8-bit resolution with no missing codes
- Successive approximation conversion technique
- Easy interface to all microprocessors and microcontrollers
- Ratiometric conversion or with 5VDC or span adjusted voltage reference
- Latched 3-state outputs for direct connection to data buses
- Latched address inputs for stable channel selection
- No zero or full-scale adjust required in most applications
